INA SL185026
Cylindrical Roller Bearings
Cylindrical roller bearing SL1850..-A, full complement roller set, two-row, semi-locating bearing, 1 rib on outer ring, 3 ribs on inner ring, type SL18
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

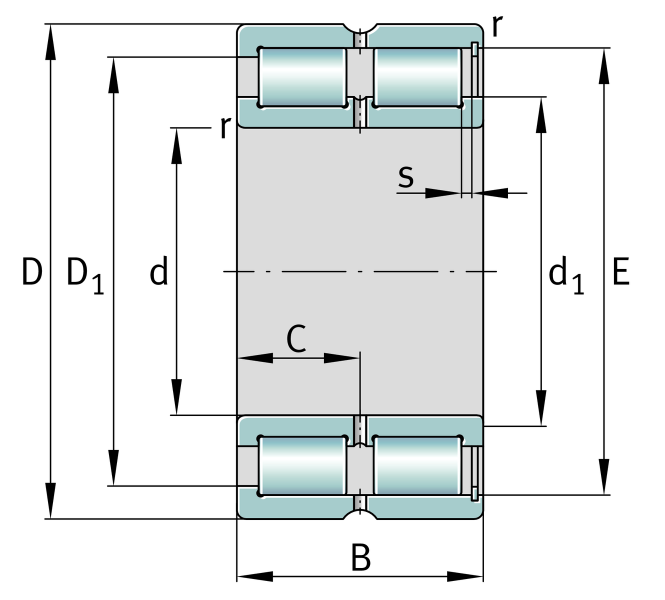

Main Dimensions & Performance Data
d
130 mm
Bore diameter
D
200 mm
Outside diameter
B
95 mm
Width
Cr
730,000 N
Basic dynamic load rating, radial
C0r
1,210,000 N
Basic static load rating, radial
Cur
167,000 N
Fatigue load limit, radial
CG
1,990 1/min
Limiting speed
nϑr
1,340 1/min
Reference speed
≈m
10.154 kg
Weight

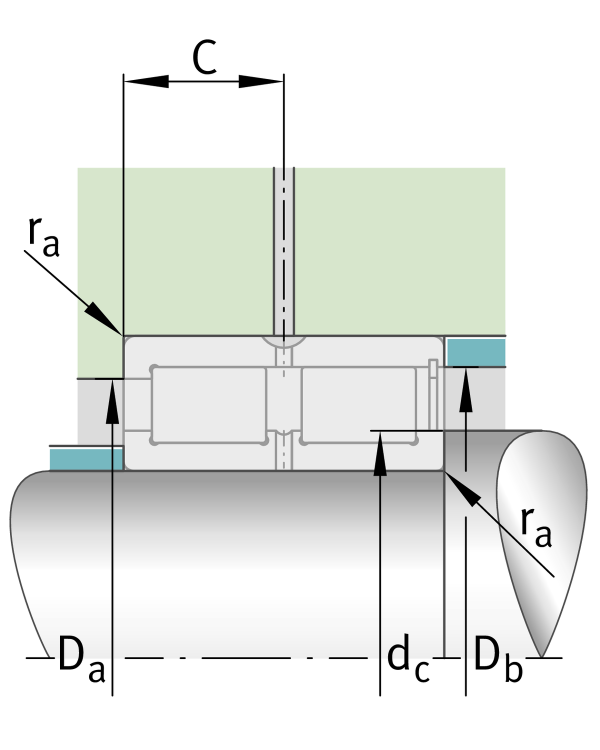

Mounting dimensions
d min
148.5 mm
Minimum shaft shoulder
da min
148.6 mm
Minimum diameter shaft shoulder
Da max
175.5 mm
Maximum diameter of housing shoulder
ra max
2 mm
Maximum recess radius
ra1 max
2 mm
Maximum recess radius
De min
175.5 mm
Minimum diameter of housing shoulder
