INA SL192318-TB-XL
Cylindrical Roller Bearings
Cylindrical roller bearing SL1923, full compl, roller set self-retaining, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type SL19
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

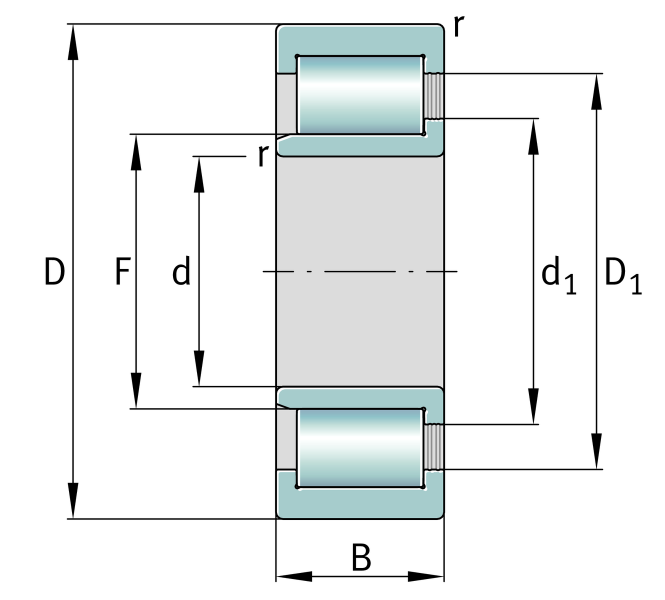

Main Dimensions & Performance Data
d
90 mm
Bore diameter
D
190 mm
Outside diameter
B
64 mm
Width
Cr
620,000 N
Basic dynamic load rating, radial
C0r
650,000 N
Basic static load rating, radial
Cur
118,000 N
Fatigue load limit, radial
CG
2,750 1/min
Limiting speed
nϑr
1,760 1/min
Reference speed
≈m
8.619 kg
Weight
