INA SL192319-TB-XL
Cylindrical Roller Bearings

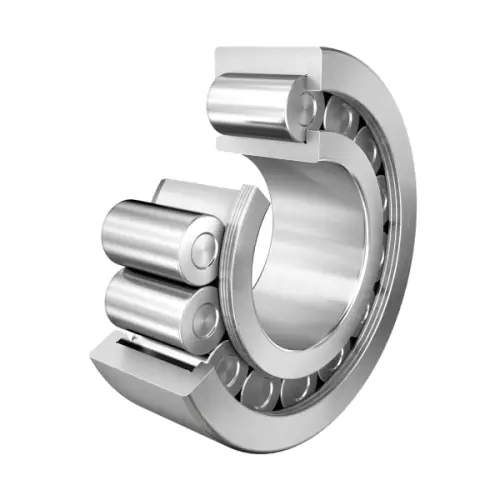

Cylindrical roller bearing SL1923, full compl, roller set self-retaining, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type SL19
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

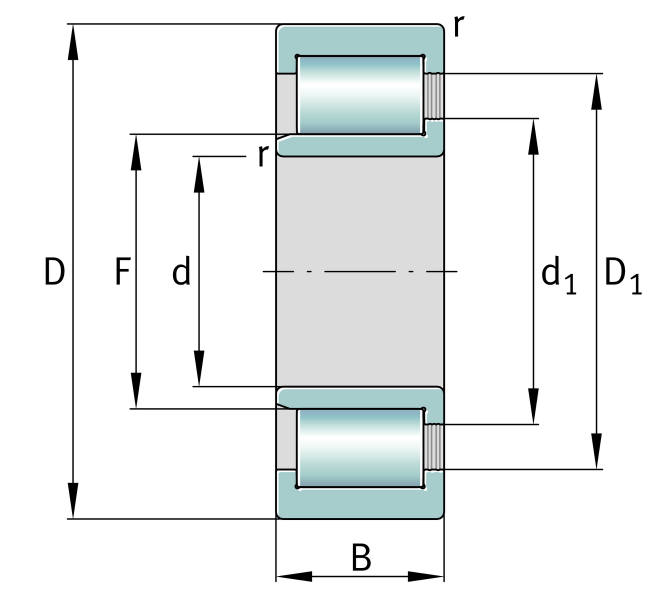

Main Dimensions & Performance Data
d
95 mm
Bore diameter
D
200 mm
Outside diameter
B
67 mm
Width
Cr
650,000 N
Basic dynamic load rating, radial
C0r
710,000 N
Basic static load rating, radial
Cur
126,000 N
Fatigue load limit, radial
CG
2,600 1/min
Limiting speed
nϑr
1,620 1/min
Reference speed
≈m
9.959 kg
Weight
