INA SL192320-TB-XL-BR
Cylindrical Roller Bearings

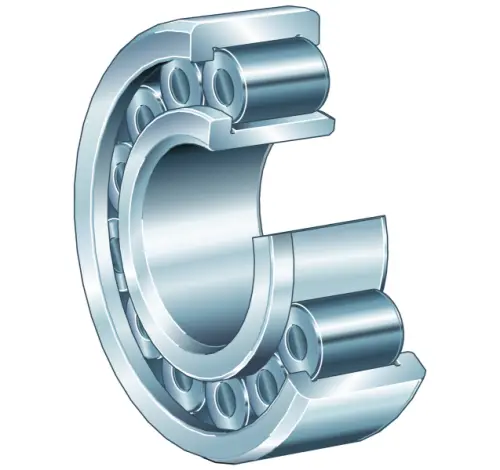

Cylindrical roller bearing SL1923, full compl, roller set self-retaining, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type SL19
(BRAND)：INA
(Availability)：In Stock
Main Dimensions & Performance Data
d
100 mm
Bore diameter
D
215 mm
Outside diameter
B
73 mm
Width
Cr
790,000 N
Basic dynamic load rating, radial
C0r
850,000 N
Basic static load rating, radial
Cur
150,000 N
Fatigue load limit, radial
CG
2,420 1/min
Limiting speed
nϑr
1,490 1/min
Reference speed
≈m
12.771 kg
Weight
