INA SL192326-TB-XL-BR

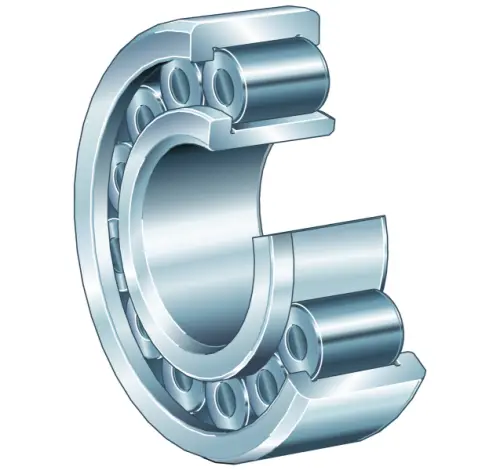

Cylindrical Roller Bearings
Cylindrical roller bearing SL1923, full compl, roller set self-retaining, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type SL19
(BRAND)：INA
(Availability)：In Stock
Main Dimensions & Performance Data
d
130 mm
Bore diameter
D
280 mm
Outside diameter
B
93 mm
Width
Cr
1,260,000 N
Basic dynamic load rating, radial
C0r
1,380,000 N
Basic static load rating, radial
Cur
225,000 N
Fatigue load limit, radial
CG
1,810 1/min
Limiting speed
nϑr
1,040 1/min
Reference speed
≈m
27.8 kg
Weight
