INA SL192338-TB-BR-C3
Cylindrical Roller Bearings

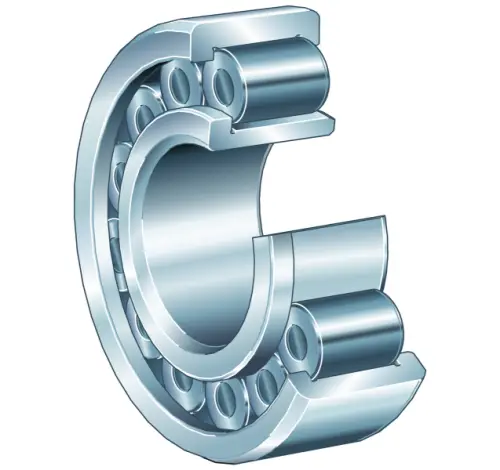

Cylindrical roller bearing SL1923, full compl, roller set self-retaining, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type SL19
(BRAND)：INA
(Availability)：In Stock
Main Dimensions & Performance Data
d
190 mm
Bore diameter
D
400 mm
Outside diameter
B
132 mm
Width
Cr
2,220,000 N
Basic dynamic load rating, radial
C0r
2,950,000 N
Basic static load rating, radial
Cur
320,000 N
Fatigue load limit, radial
CG
1,090 1/min
Limiting speed
nϑr
630 1/min
Reference speed
≈m
78.785 kg
Weight
