INA SL192344-TB-BR-C3

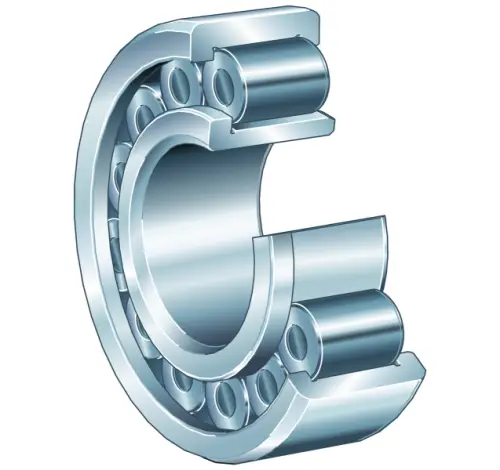

Cylindrical Roller Bearings
Cylindrical roller bearing SL1923, full compl, roller set self-retaining, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type SL19
(BRAND)：INA
(Availability)：In Stock
Main Dimensions & Performance Data
d
220 mm
Bore diameter
D
460 mm
Outside diameter
B
145 mm
Width
Cr
2,650,000 N
Basic dynamic load rating, radial
C0r
3,450,000 N
Basic static load rating, radial
Cur
360,000 N
Fatigue load limit, radial
CG
910 1/min
Limiting speed
nϑr
520 1/min
Reference speed
≈m
109.2 kg
Weight
