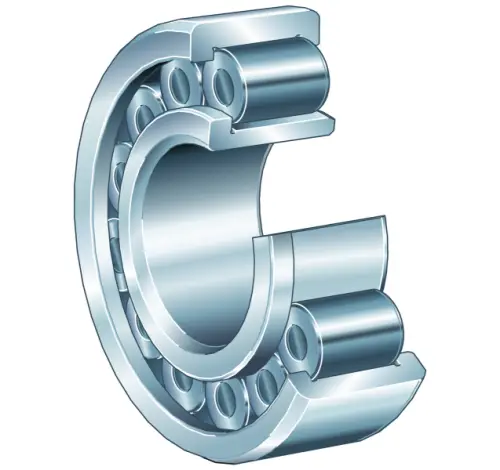

INA SL192348-TB
Cylindrical Roller Bearings
Cylindrical roller bearing SL1923, full compl, roller set self-retaining, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type SL19
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

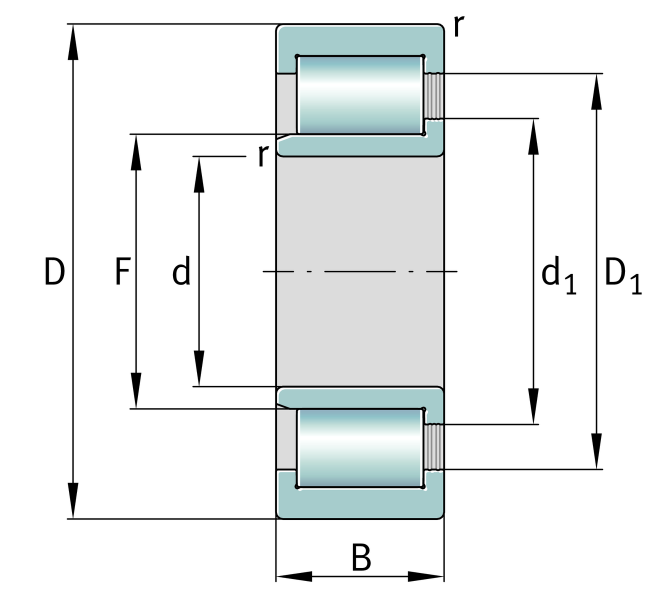

Main Dimensions & Performance Data
d
240 mm
Bore diameter
D
500 mm
Outside diameter
B
155 mm
Width
Cr
2,900,000 N
Basic dynamic load rating, radial
C0r
3,800,000 N
Basic static load rating, radial
Cur
390,000 N
Fatigue load limit, radial
CG
860 1/min
Limiting speed
nϑr
500 1/min
Reference speed
≈m
141.5 kg
Weight
