INA SX0118/500-VSP
Crossed Roller Bearing
Crossed roller bearingsdimension series 18 to DIN 616
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

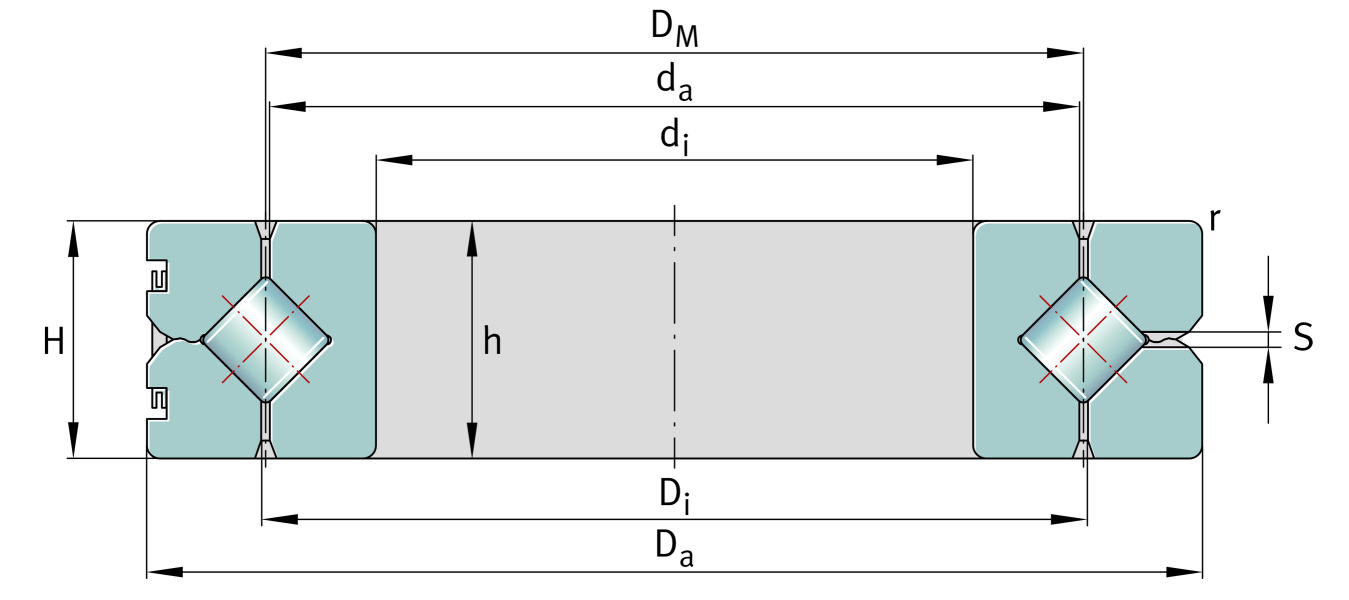

Main Dimensions & Performance Data
d1
500 mm
Bore Diameter
0.008 mm
Bore diameter upper tolerance
-0.032 mm
Bore diameter lower tolerance
Da
620 mm
Outside Diameter
0 mm
Outside diameter upper tolerance
-0.044 mm
Outside diameter lower tolerance
H
56 mm
Height of the assembled bearing
hi
56 mm
Heigth inner ring
0.16 mm
Width upper tolerance
-0.16 mm
Width lower tolerance
≈m
42.7 kg
Weight
