INA VA140188-H
Slewing Rings
Slewing ring, 4 point contact bearing, internal gear teeth
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

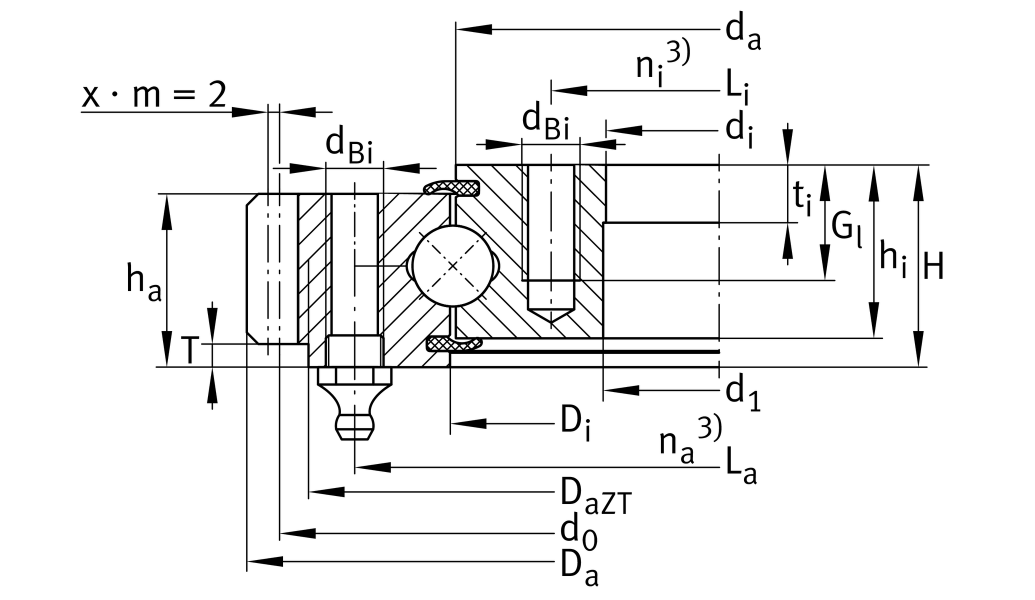

Main Dimensions & Performance Data
di
136 mm
Bore Diameter
0.5 mm
Bore diameter upper tolerance
-0.5 mm
Bore diameter lower tolerance
diZT
135 mm
Diameter centring inner ring
0.2 mm
Diameter centring inner ring upper tolerance
0 mm
Diameter centring inner ring lower tolerance
H
35 mm
Height
Da
259.36 mm
Outside Diameter
Di ZT
238 mm
Diameter centring outer ring
0 mm
Diameter centring outer ring upper tolerance
-0.07 mm
Diameter centring outer ring lower tolerance
T
4 mm
Length centering outer ring
t
10 mm
Length centering inner ring
ha
30 mm
Width outer ring
hi
30 mm
Height of inner ring
0.03 mm
Normal radial clearance min.
0.1 mm
Normal radial clearance max.
0.05 mm
Normal axial clearance min.
0.2 mm
Normal axial clearance max.
≈m
7.5 kg
Weight
