INA VA160235-N
Slewing Rings
Slewing ring, 4 point contact bearing, external gear teeth
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

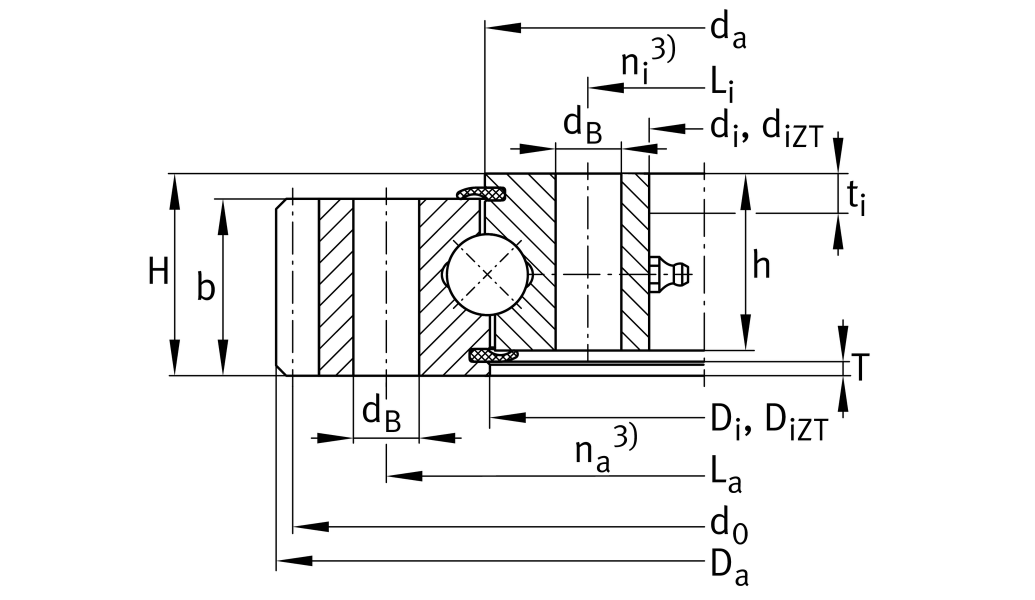

Main Dimensions & Performance Data
di
171 mm
Bore Diameter
H
40 mm
Height
Da
318.6 mm
Outside Diameter
Di ZT
236 mm
Diameter centring outer ring
IT8
Diameter centring outer ring tolerance
T
2.3 mm
Length centering outer ring
t
6 mm
Length centering inner ring
ha
35 mm
Width outer ring
hi
35 mm
Height of inner ring
0.04 mm
Normal radial clearance min.
0.16 mm
Normal radial clearance max.
0.07 mm
Normal axial clearance min.
0.26 mm
Normal axial clearance max.
≈m
12.901 kg
Weight
