INA VLA200414-N-ZT-RL1
Slewing Rings
Slewing ring, 4 point contact bearing, external gear teeth
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

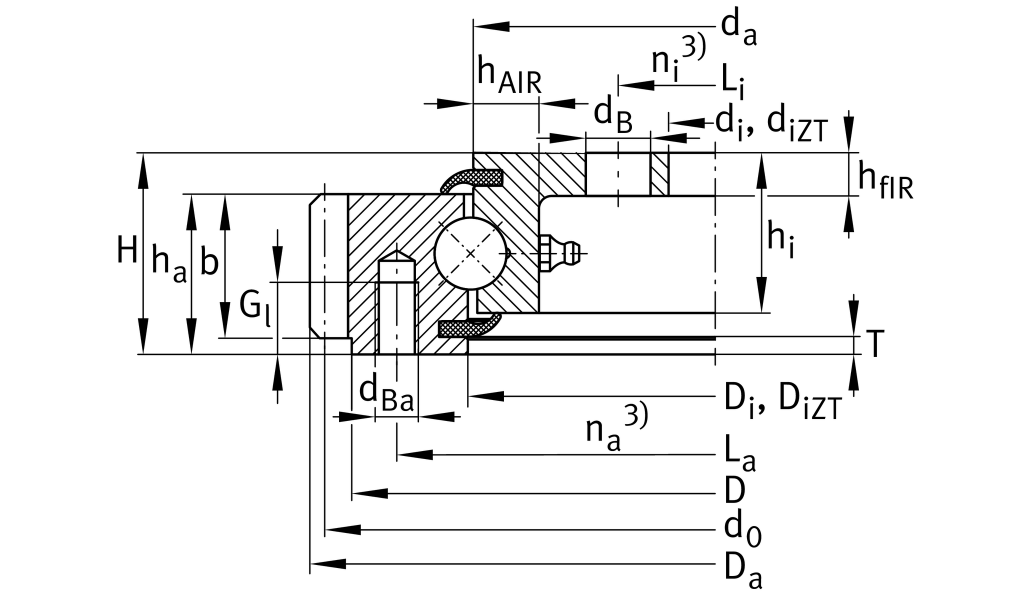

Main Dimensions & Performance Data
diZT
306 mm
Diameter centring inner ring
IT8
Diameter centring inner ring tolerance
hf IR
12 mm
Height of flange
H
56 mm
Height
Da
503.3 mm
Outside Diameter
Di ZT
417 mm
Diameter centring outer ring
IT8
Diameter centring outer ring tolerance
T
4.5 mm
Length centering outer ring
t
12 mm
Length centering inner ring
ha
44.5 mm
Width outer ring
hi
44.5 mm
Height of inner ring
≈m
30.1 kg
Weight
