INA VLI201094-N
Slewing Rings
Four point contact bearings, light series 20, internal gear teeth, lip seals on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

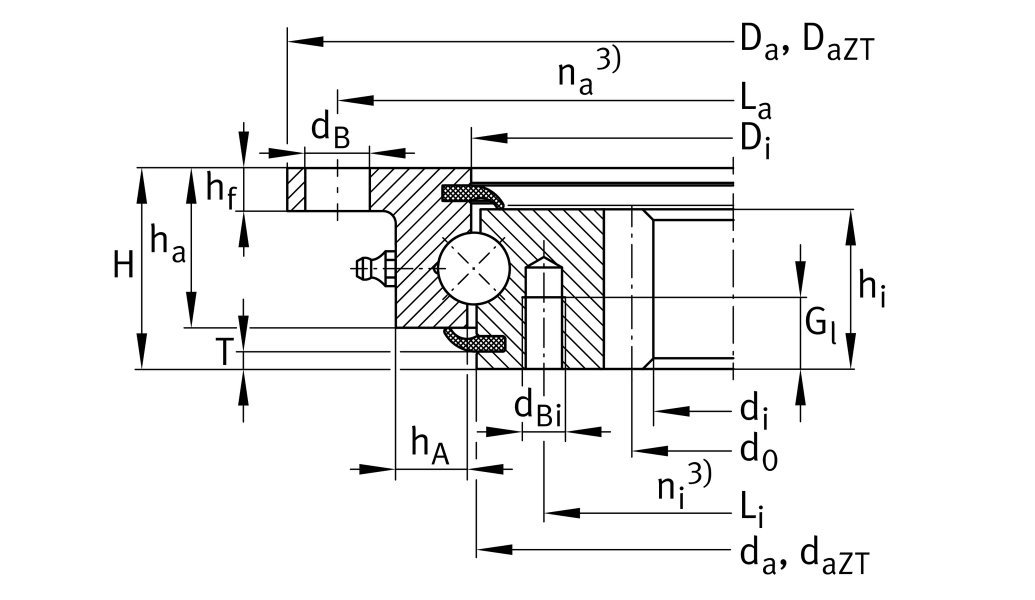

Main Dimensions & Performance Data
d1
984 mm
Bore Diameter
H
56 mm
Height
Da
1,198 mm
Outside Diameter
-0.7 mm
Outside diameter lower tolerance
0 mm
Outside diameter upper tolerance
-IT8
Diameter centring outer ring tolerance
hf
12 mm
Height of flange
ha
44.5 mm
Width outer ring
hi
44.5 mm
Width inner ring
≈m
81.51 kg
Weight
