INA VSA200414-N-RL1
Slewing Rings
Slewing ring, 4 point contact bearing, external gear teeth
(BRAND)：INA
(Availability)：In Stock

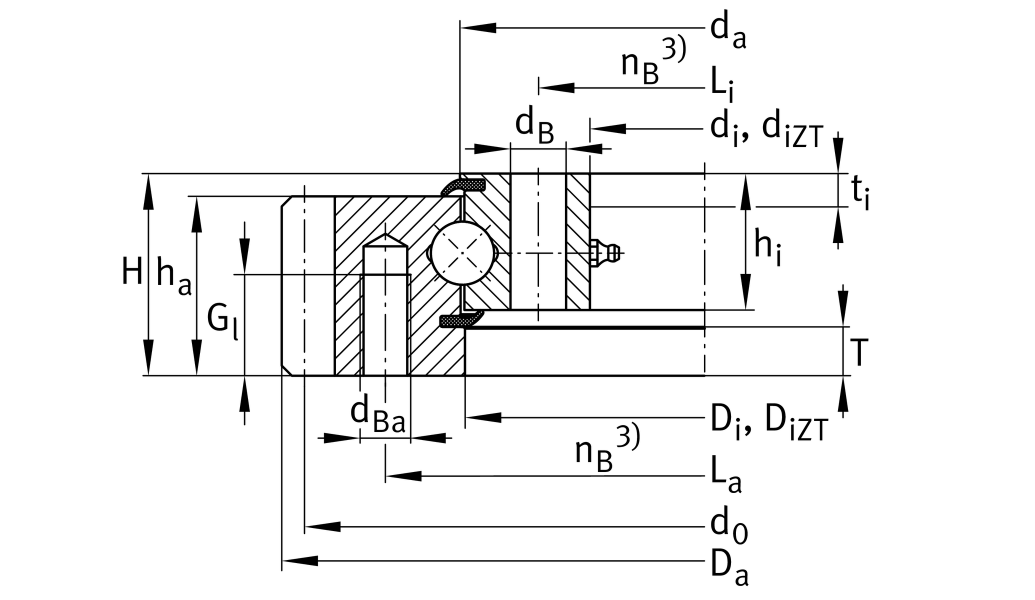

Main Dimensions & Performance Data
di
342 mm
Bore Diameter
0.5 mm
Bore diameter upper tolerance
0 mm
Bore diameter lower tolerance
H
56 mm
Height
Da
503.3 mm
Outside Diameter
ha
44.5 mm
Width outer ring
hi
44.5 mm
Height of inner ring
≈m
31.3 kg
Weight
