INA VSA200414-N-VSP-ZT
Slewing Rings

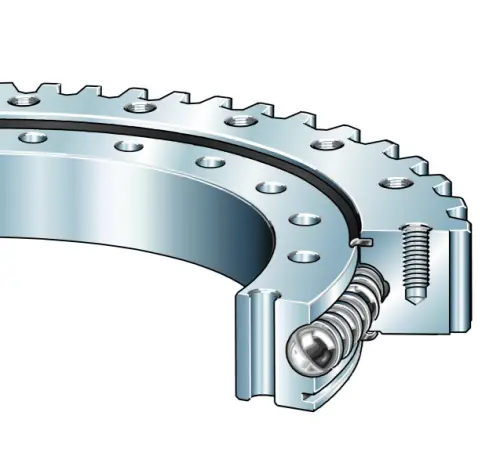

Slewing ring, 4 point contact bearing, external gear teeth
(BRAND)：INA
(Availability)：In Stock

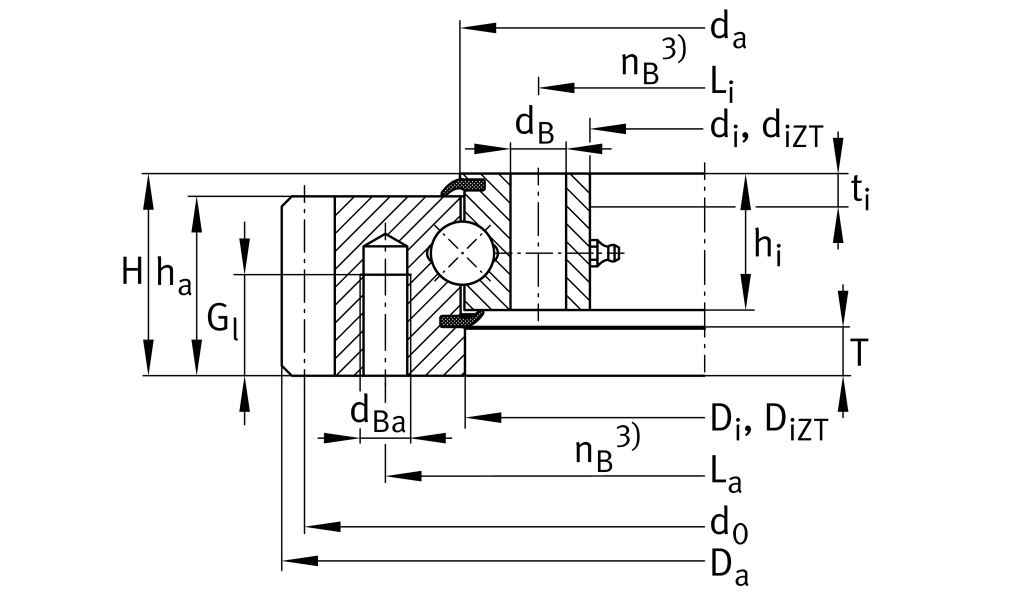

Main Dimensions & Performance Data
di
342 mm
Bore Diameter
0.5 mm
Bore diameter upper tolerance
0 mm
Bore diameter lower tolerance
diZT
344 mm
Diameter centring inner ring
IT8
Diameter centring inner ring tolerance
H
56 mm
Height
Da
503.3 mm
Outside Diameter
Di ZT
417 mm
Diameter centring outer ring
IT8
Diameter centring outer ring tolerance
T
4.5 mm
Length centering outer ring
t
10 mm
Length centering inner ring
ha
44.5 mm
Width outer ring
hi
44.5 mm
Height of inner ring
≈m
31.3 kg
Weight
