INA VSA200844-N-VSP
Slewing Rings

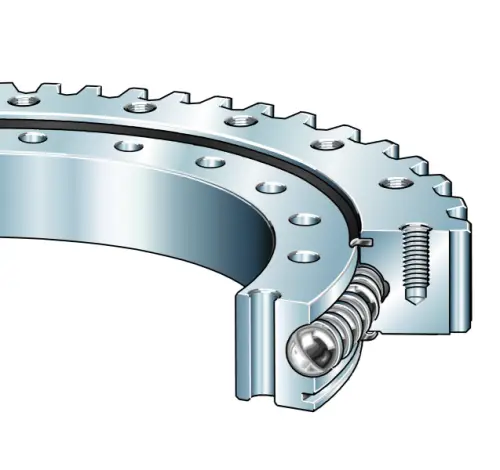

Slewing ring, 4 point contact bearing, external gear teeth
(BRAND)：INA
(Availability)：In Stock

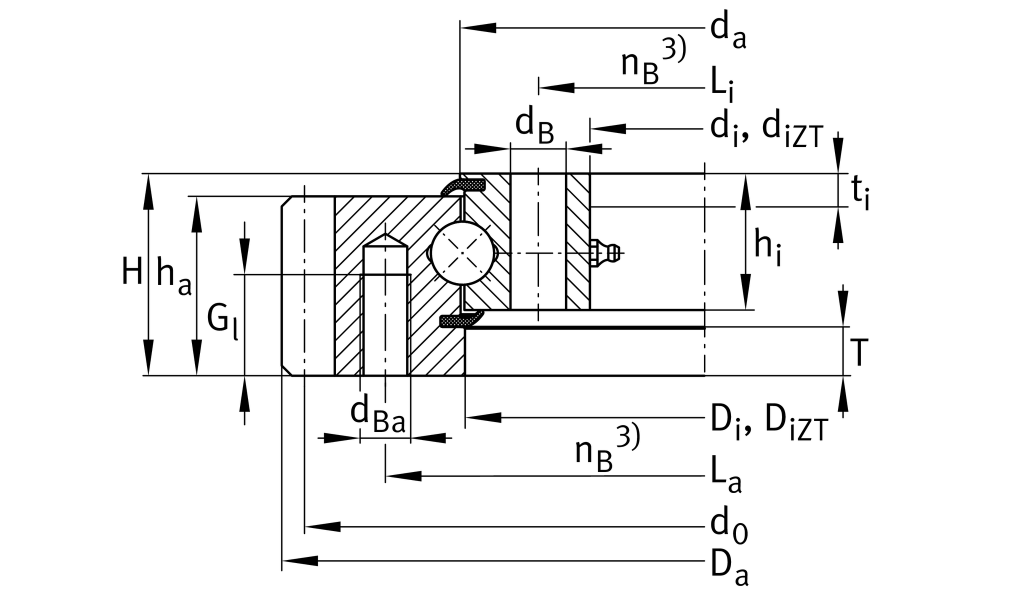

Main Dimensions & Performance Data
di
772 mm
Bore Diameter
0.6 mm
Bore diameter upper tolerance
0 mm
Bore diameter lower tolerance
H
56 mm
Height
Da
950.1 mm
Outside Diameter
ha
44.5 mm
Width outer ring
hi
44.5 mm
Height of inner ring
≈m
71 kg
Weight
