INA VSA250755-N
Slewing Rings

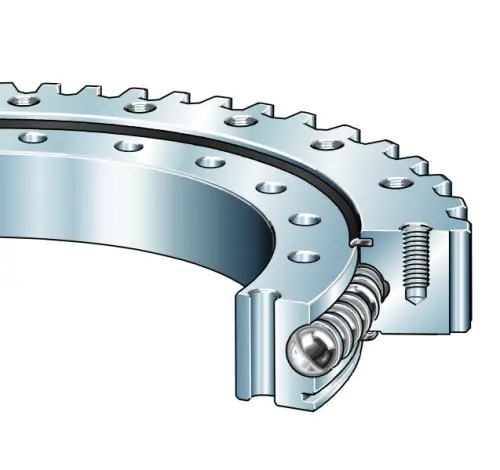

Slewing ring, 4 point contact bearing, external gear teeth
(BRAND)：INA
(Availability)：In Stock

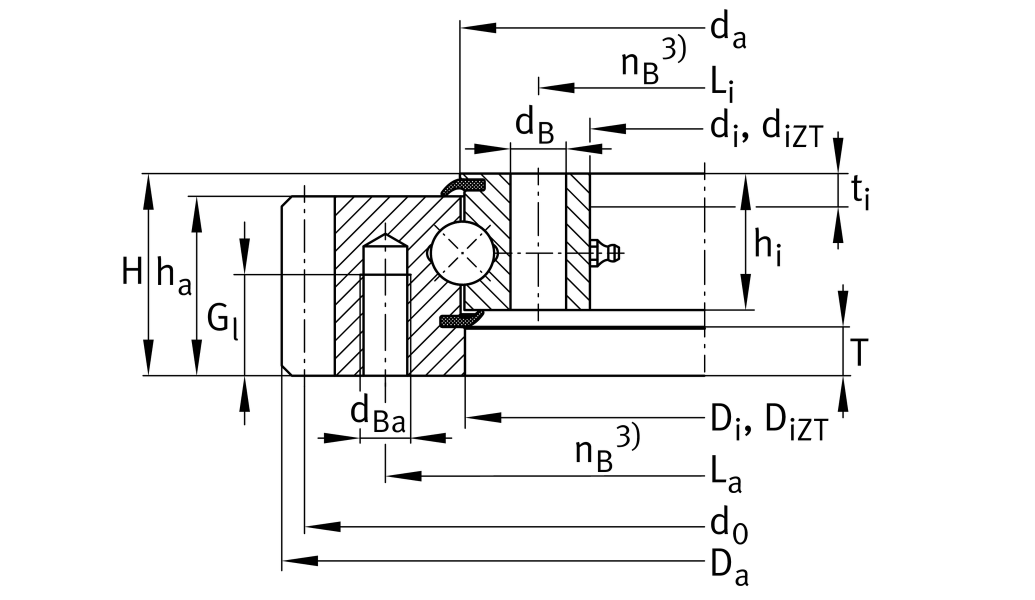

Main Dimensions & Performance Data
di
655 mm
Bore Diameter
H
80 mm
Height
Da
898 mm
Outside Diameter
ha
71 mm
Width outer ring
hi
54 mm
Height of inner ring
0.03 mm
Normal radial clearance min.
0.13 mm
Normal radial clearance max.
0.05 mm
Normal axial clearance min.
0.24 mm
Normal axial clearance max.
≈m
127.1 kg
Weight
