INA VSI200414-N-RL1
Slewing Rings

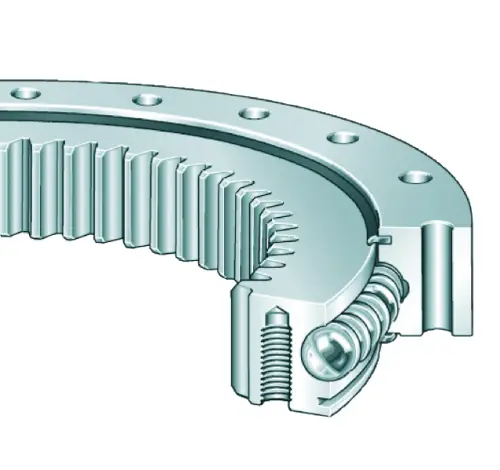

Slewing ring, 4 point contact bearing, internal gear teeth
(BRAND)：INA
(Availability)：In Stock

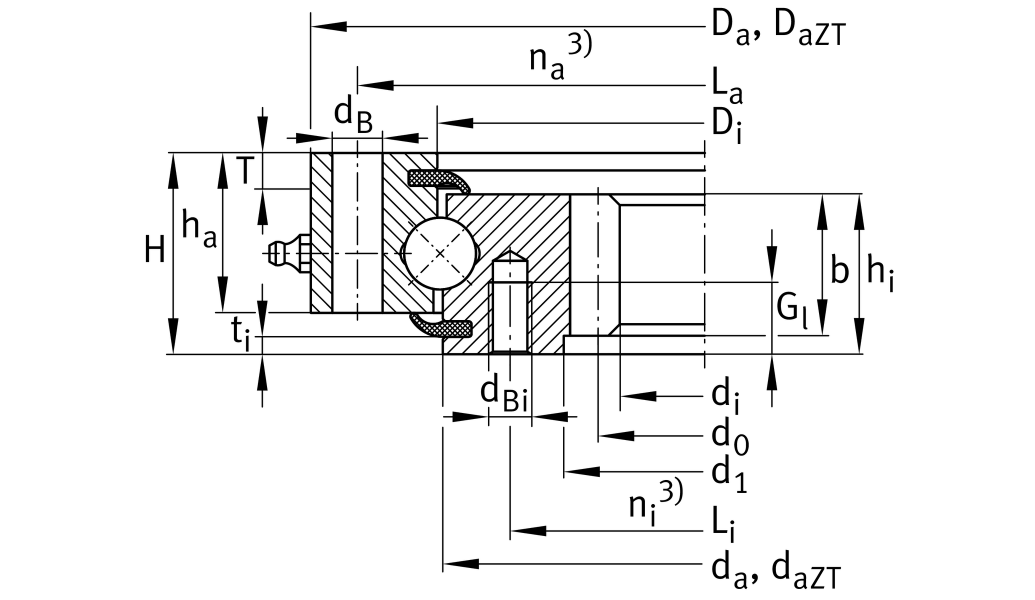

Main Dimensions & Performance Data
d1
325 mm
Bore Diameter
H
56 mm
Height
Da
486 mm
Outside Diameter
-0.5 mm
Outside diameter lower tolerance
0 mm
Outside diameter upper tolerance
ha
44.5 mm
Width outer ring
hi
44.5 mm
Width inner ring
≈m
30.8 kg
Weight
