INA VSI200844-N-VSP-ZT
Slewing Rings
Slewing ring, 4 point contact bearing, internal gear teeth
(BRAND)：INA
(Availability)：In Stock

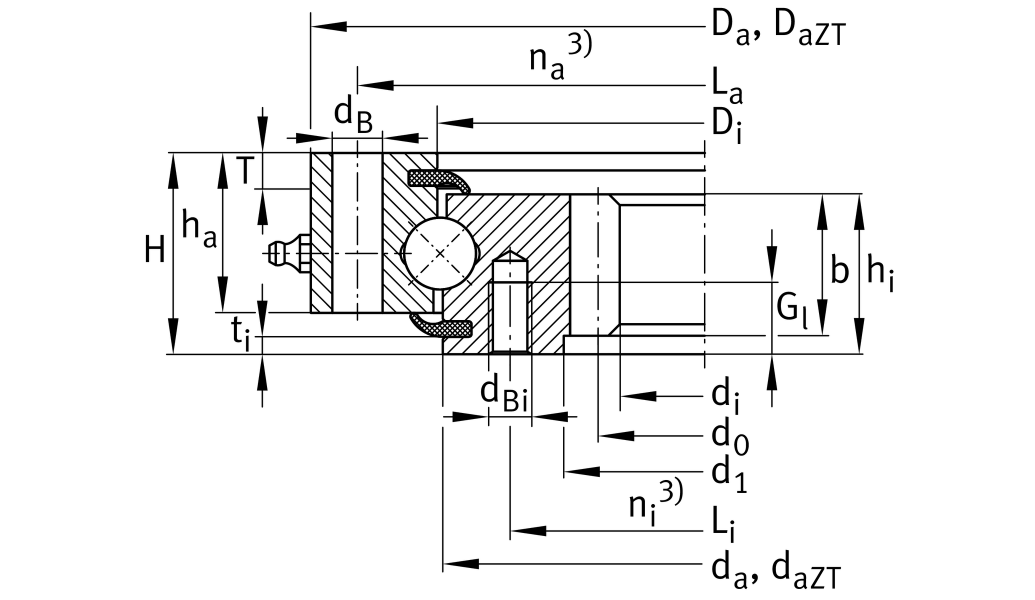

Main Dimensions & Performance Data
d1
736 mm
Bore Diameter
daZT
841 mm
Diameter centring inner ring
-IT8
Diameter centring inner ring tolerance
T
4.5 mm
Length centering inner ring
H
56 mm
Height
Da
916 mm
Outside Diameter
-0.6 mm
Outside diameter lower tolerance
0 mm
Outside diameter upper tolerance
Da ZT
914 mm
Diameter centring outer ring
-IT8
Diameter centring outer ring tolerance
T
10 mm
Length centering outer ring
ha
44.5 mm
Width outer ring
hi
44.5 mm
Width inner ring
≈m
69 kg
Weight
