INA VSI251055-N-ZT
Slewing Rings

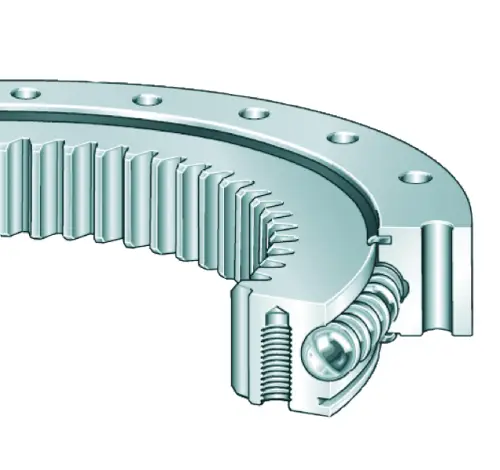

Slewing ring, 4 point contact bearing, internal gear teeth
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d1
910 mm
Bore Diameter
daZT
1,055 mm
Diameter centring inner ring
-IT8
Diameter centring inner ring tolerance
T
19 mm
Length centering inner ring
H
80 mm
Height
Da
1,155 mm
Outside Diameter
Da ZT
1,153 mm
Diameter centring outer ring
-IT8
Diameter centring outer ring tolerance
T
15 mm
Length centering outer ring
ha
54 mm
Width outer ring
hi
71 mm
Width inner ring
0.03 mm
Normal radial clearance min.
0.13 mm
Normal radial clearance max.
0.05 mm
Normal axial clearance min.
0.24 mm
Normal axial clearance max.
≈m
165 kg
Weight
