INA VSU200644-VSP-ZT
Slewing Rings

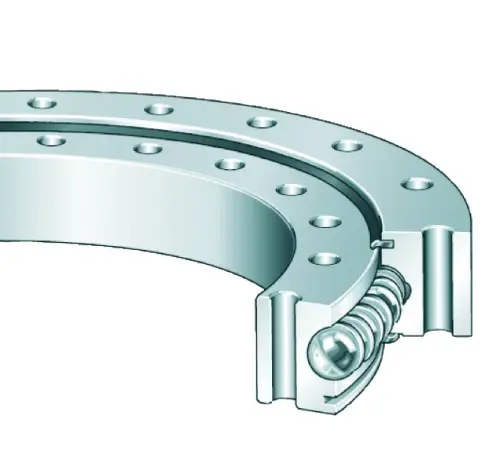

Slewing Ring, Four Point contact bearing, without gear teeth
(BRAND)：INA
(Availability)：In Stock

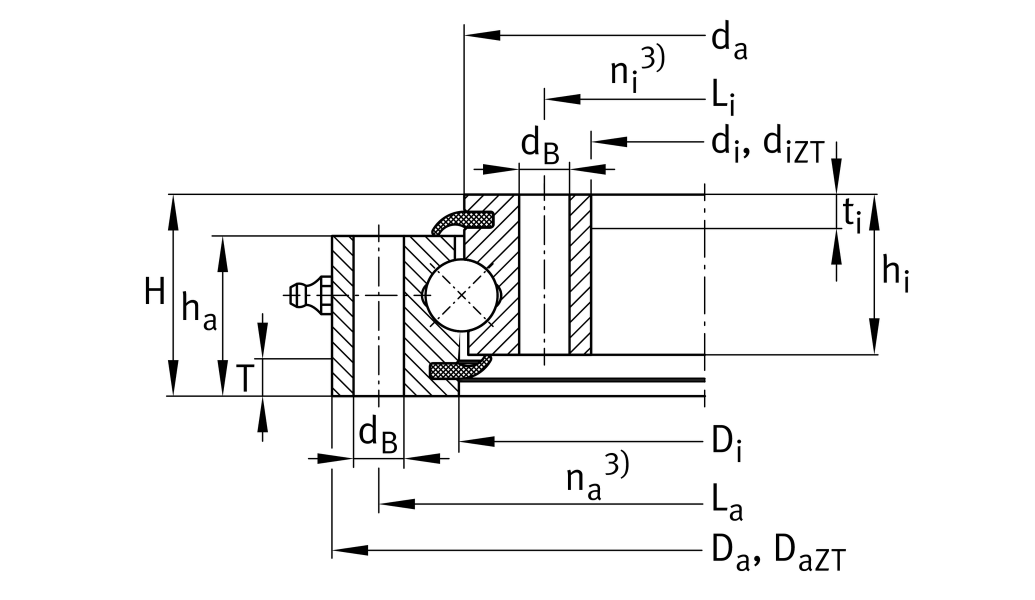

Main Dimensions & Performance Data
di
572 mm
Inner diameter inner ring
0 mm
Inner diameter inner ring lower tolerance
0.6 mm
Inner diameter inner ring upper tolerance
diZT
574 mm
Diameter centring inner ring
IT8
Diameter centring inner ring tolerance
H
56 mm
Height
Da
716 mm
Outside Diameter
-0.6 mm
Outside diameter lower tolerance
0 mm
Outside diameter upper tolerance
Da ZT
714 mm
Centring diameter outer ring
-IT8
Diameter centring outer ring tolerance
T
10 mm
Length centering outer ring
t
10 mm
Length centering inner ring
ha
44.5 mm
Width outer ring
hi
44.5 mm
Width inner ring
≈m
44.4 kg
Weight
