INA VU140179-RR
Slewing Rings

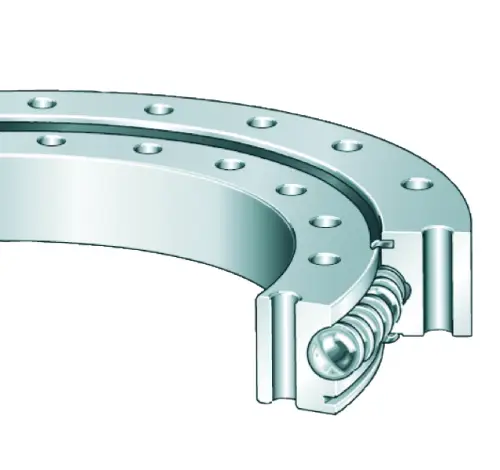

Four point contact bearings without gear teeth, sealed on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

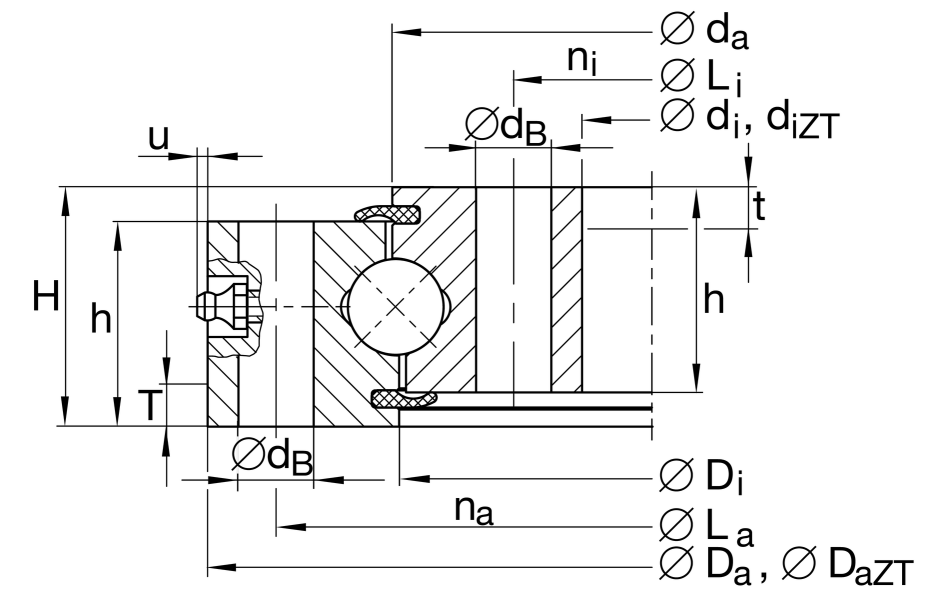

Main Dimensions & Performance Data
di
124.5 mm
Inner diameter inner ring
H
35 mm
Height
Da
234 mm
Outside Diameter
ha
30 mm
Width outer ring
hi
30 mm
Width inner ring
0.04 mm
Normal radial clearance min.
0.14 mm
Normal radial clearance max.
0.07 mm
Normal axial clearance min.
0.23 mm
Normal axial clearance max.
≈m
7 kg
Weight
