INA VU140325-VSP
Slewing Rings

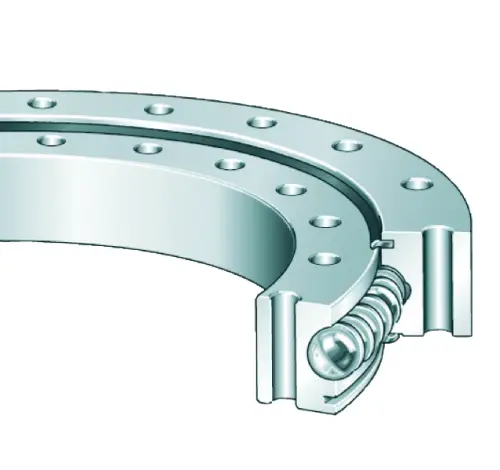

Four point contact bearings without gear teeth, sealed on both sides
(BRAND)：INA
(Availability)：In Stock

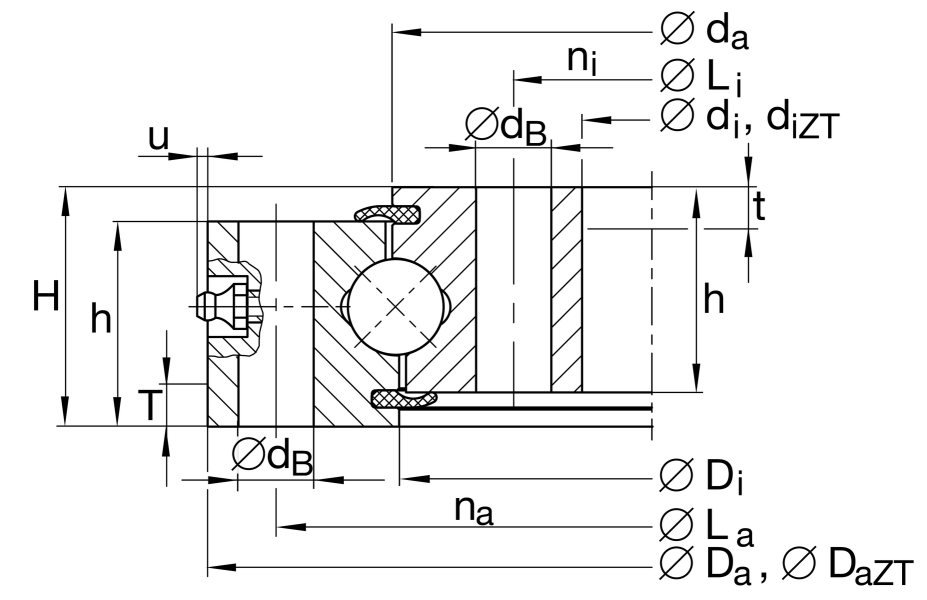

Main Dimensions & Performance Data
di
270 mm
Inner diameter inner ring
0.5 mm
Inner diameter inner ring lower tolerance
0.5 mm
Inner diameter inner ring upper tolerance
H
35 mm
Height
Da
380 mm
Outside Diameter
0.5 mm
Outside diameter lower tolerance
0.5 mm
Outside diameter upper tolerance
ha
30 mm
Width outer ring
hi
30 mm
Width inner ring
≈m
11.325 kg
Weight
