INA VU200220-ZT

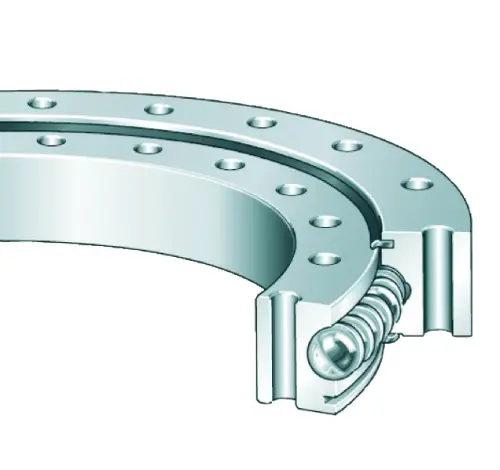

Slewing Rings
Four point contact bearings without gear teeth, sealed on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

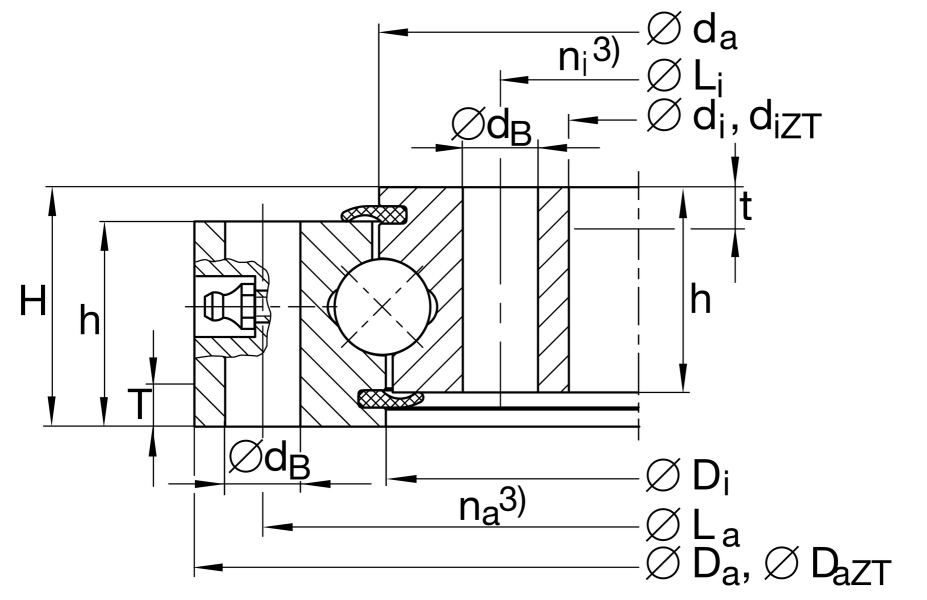

Main Dimensions & Performance Data
di
138 mm
Inner diameter inner ring
0.5 mm
Inner diameter inner ring lower tolerance
0.5 mm
Inner diameter inner ring upper tolerance
diZT
140 mm
Diameter centring inner ring
IT8
Diameter centring inner ring tolerance
H
46 mm
Height
Da
302 mm
Outside Diameter
0.5 mm
Outside diameter lower tolerance
0.5 mm
Outside diameter upper tolerance
Da ZT
300 mm
Centring diameter outer ring
-IT8
Diameter centring outer ring tolerance
T
6 mm
Length centering outer ring
t
6 mm
Length centering inner ring
ha
41 mm
Width outer ring
hi
41 mm
Width inner ring
0.05 mm
Normal radial clearance min.
0.2 mm
Normal radial clearance max.
0.08 mm
Normal axial clearance min.
0.33 mm
Normal axial clearance max.
≈m
15.601 kg
Weight
