INA VU200405

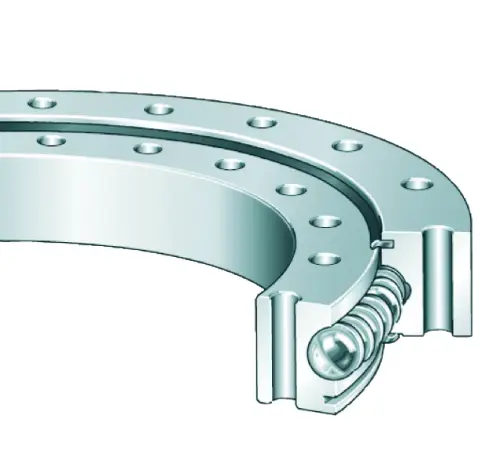

Slewing Rings
Four point contact bearings without gear teeth, sealed on both sides
(BRAND)：INA
(Availability)：In Stock

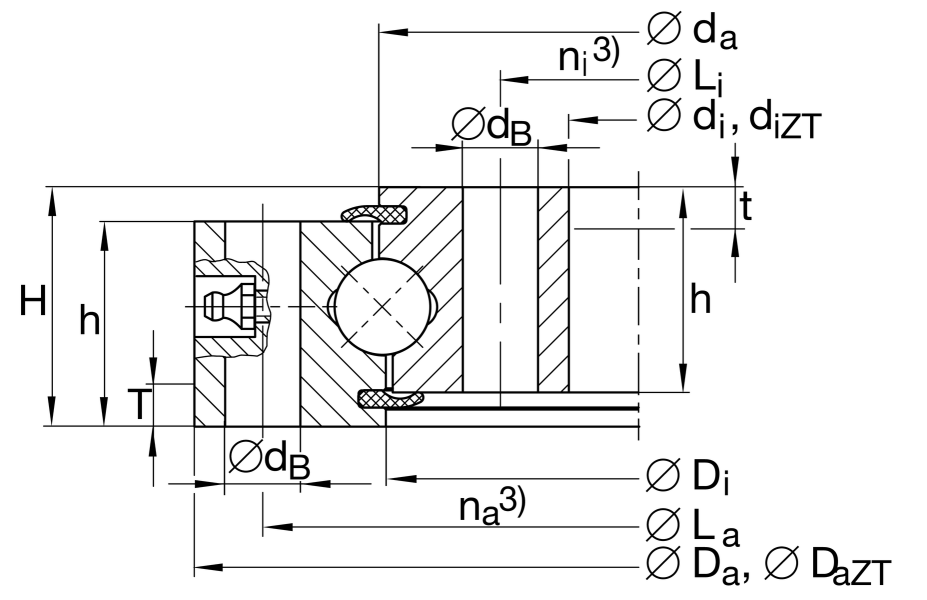

Main Dimensions & Performance Data
di
336 mm
Inner diameter inner ring
0.5 mm
Inner diameter inner ring lower tolerance
0.5 mm
Inner diameter inner ring upper tolerance
H
46 mm
Height
Da
474 mm
Outside Diameter
0.8 mm
Outside diameter lower tolerance
0.8 mm
Outside diameter upper tolerance
ha
41 mm
Width outer ring
hi
41 mm
Width inner ring
0.05 mm
Normal radial clearance min.
0.2 mm
Normal radial clearance max.
0.08 mm
Normal axial clearance min.
0.33 mm
Normal axial clearance max.
≈m
25.05 kg
Weight
