INA VU360680

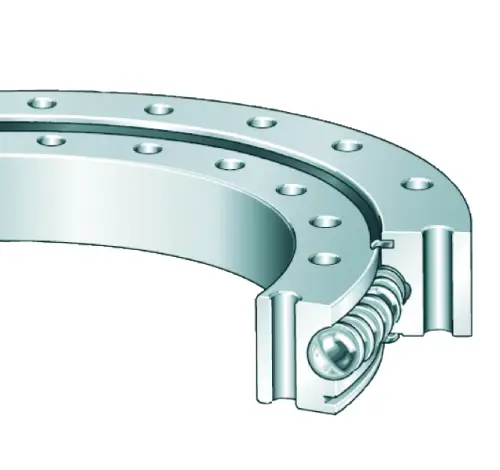

Slewing Rings
Four point contact bearings without gear teeth, sealed on both sides
(BRAND)：INA
(Availability)：In Stock

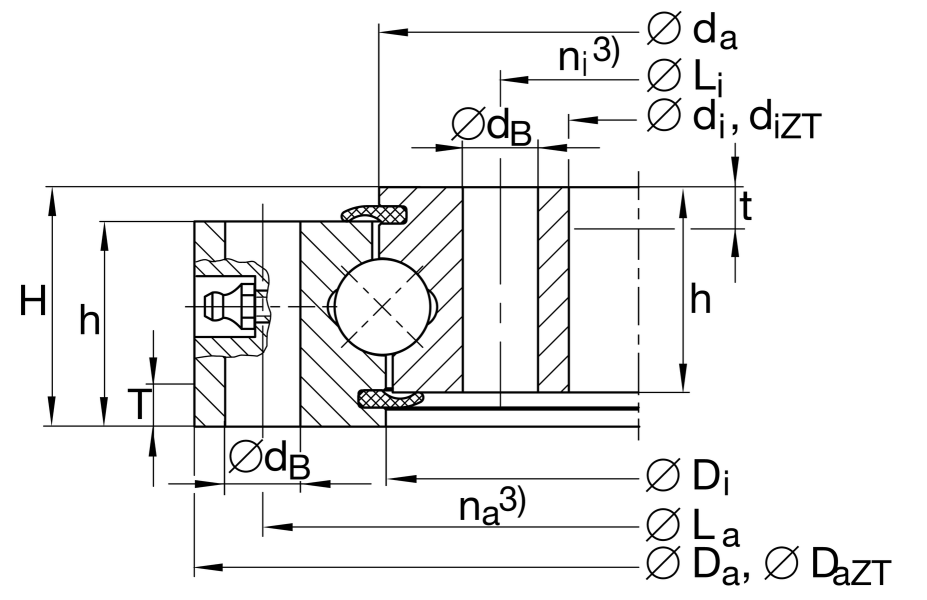

Main Dimensions & Performance Data
di
565 mm
Inner diameter inner ring
0.8 mm
Inner diameter inner ring lower tolerance
0.8 mm
Inner diameter inner ring upper tolerance
H
79 mm
Height
Da
795 mm
Outside Diameter
0.8 mm
Outside diameter lower tolerance
0.8 mm
Outside diameter upper tolerance
ha
72 mm
Width outer ring
hi
72 mm
Width inner ring
0.09 mm
Normal radial clearance min.
0.36 mm
Normal radial clearance max.
0.15 mm
Normal axial clearance min.
0.59 mm
Normal axial clearance max.
≈m
120 kg
Weight
