INA WS81209
Axial Bearing Washers
Axial cylindrical roller bearings 812, single direction, comprising K812, GS, WS
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

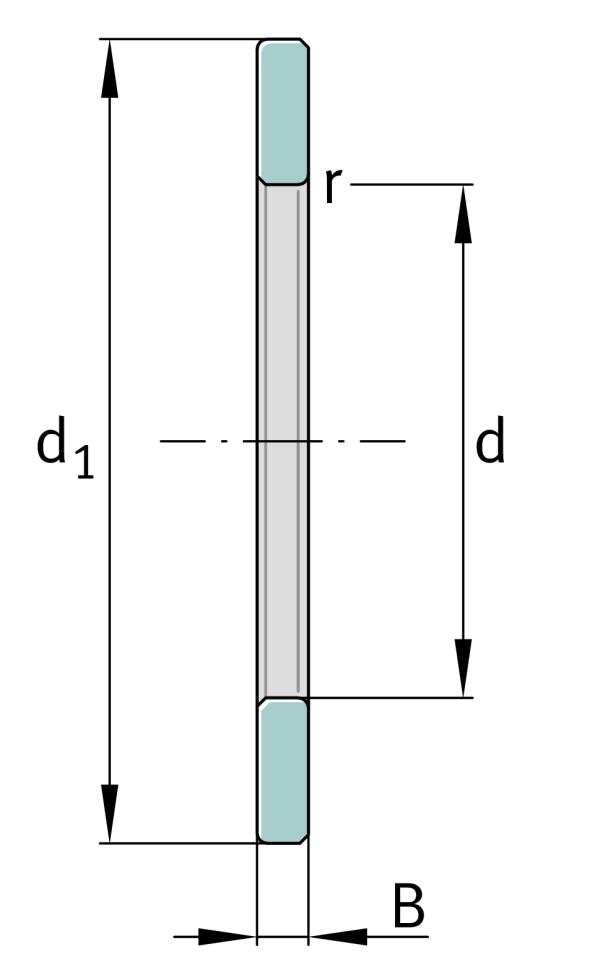

Main Dimensions & Performance Data
d
45 mm
Bore diameter
d1
73 mm
Lip diameter shaft washer
B
5.5 mm
Height shaft washer
≈m
106.3 g
Weight
Mounting dimensions
rmin
1 mm
Minimum chamfer dimension
