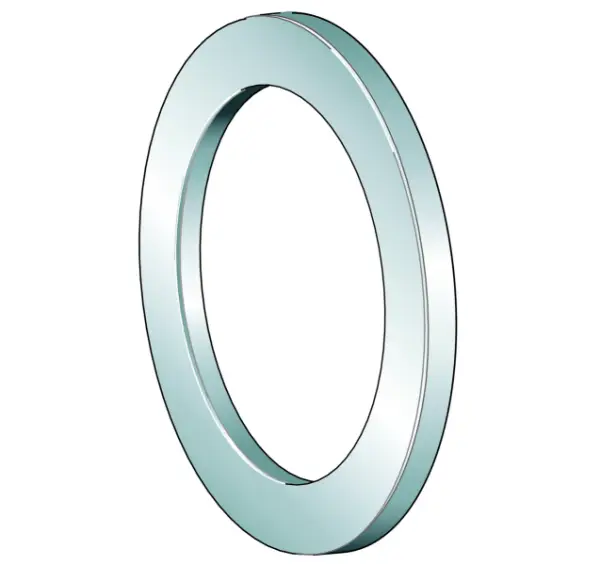

INA WS89316
Axial Bearing Washers
Axial cylindrical roller bearings 893, single direction, comprising K893, GS, WS
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

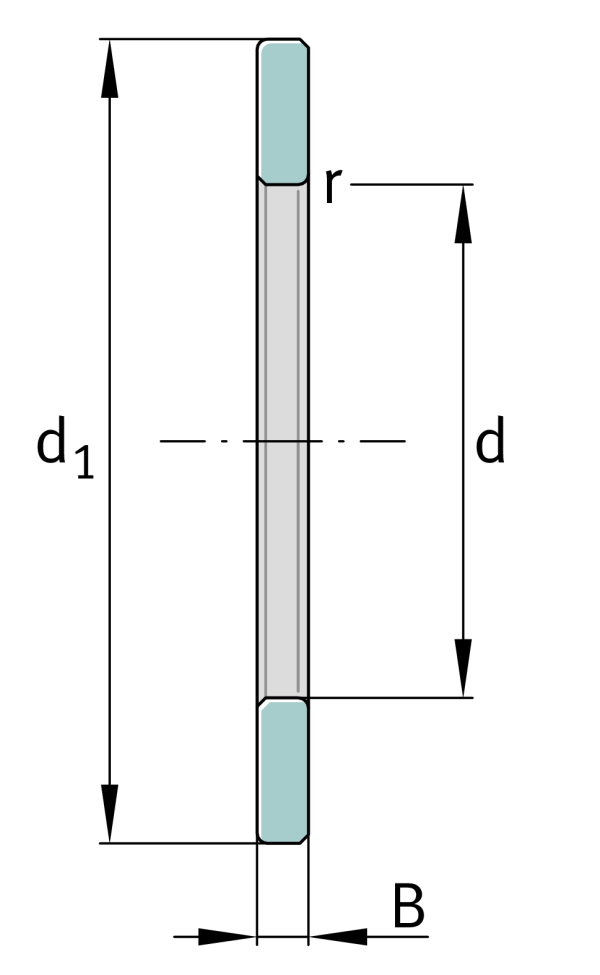

Main Dimensions & Performance Data
d
80 mm
Bore diameter
d1
140 mm
Lip diameter shaft washer
B
12.5 mm
Height shaft washer
≈m
1 kg
Weight
Mounting dimensions
rmin
1.5 mm
Minimum chamfer dimension
