INA XU050077
Slewing Rings

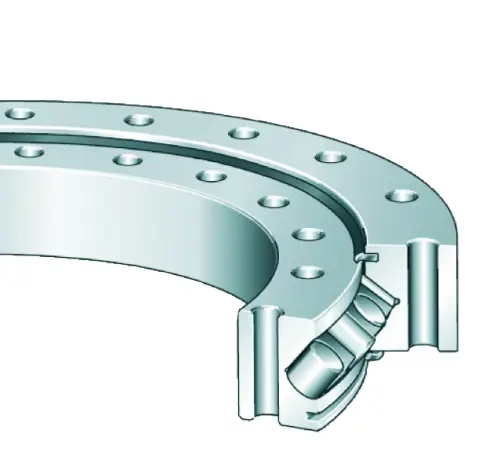

Crossed roller bearings without gear teeth, sealed on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

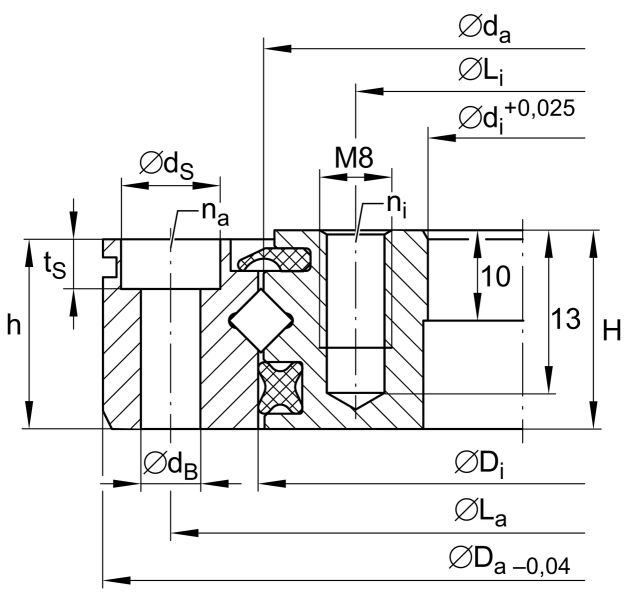

Main Dimensions & Performance Data
di
40 mm
Bore Diameter
0.025 mm
Bore diameter upper tolerance
0 mm
Bore diameter lower tolerance
t
10 mm
Length centering inner ring
Da
112 mm
Outside Diameter
0 mm
Outside diameter upper tolerance
-0.04 mm
Outside diameter lower tolerance
H
22 mm
Height
≈m
1.207 kg
Weight
