INA XU080149
Slewing Rings

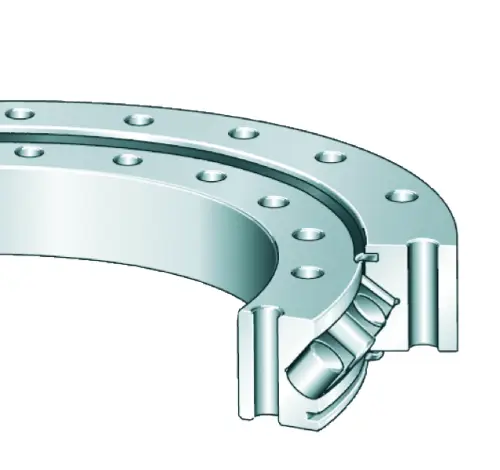

Crossed roller bearings without gear teeth, sealed on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

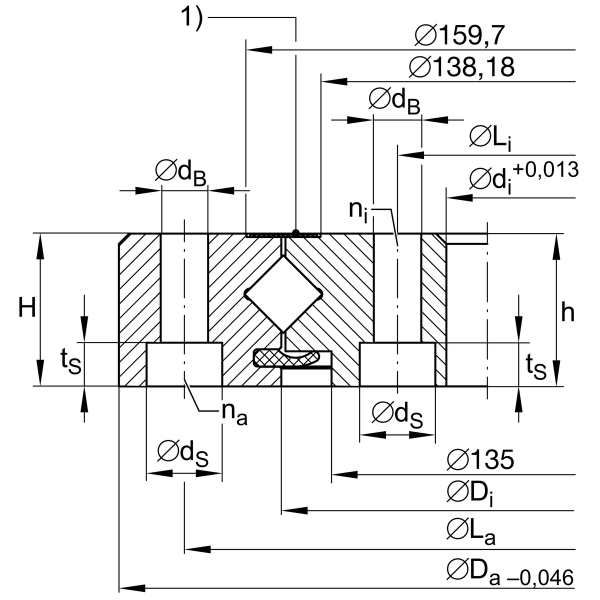

Main Dimensions & Performance Data
di
101.6 mm
Bore Diameter
0.013 mm
Bore diameter upper tolerance
0 mm
Bore diameter lower tolerance
Da
196.85 mm
Outside Diameter
0 mm
Outside diameter upper tolerance
-0.046 mm
Outside diameter lower tolerance
H
22.22 mm
Height
≈m
3.28 kg
Weight
