INA XU120222-ZT

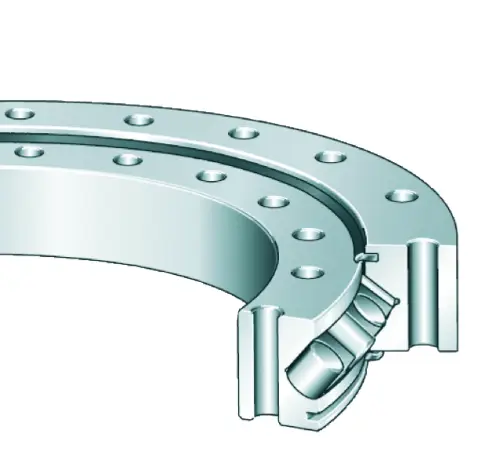

Slewing Rings
Crossed roller bearings without gear teeth, sealed on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

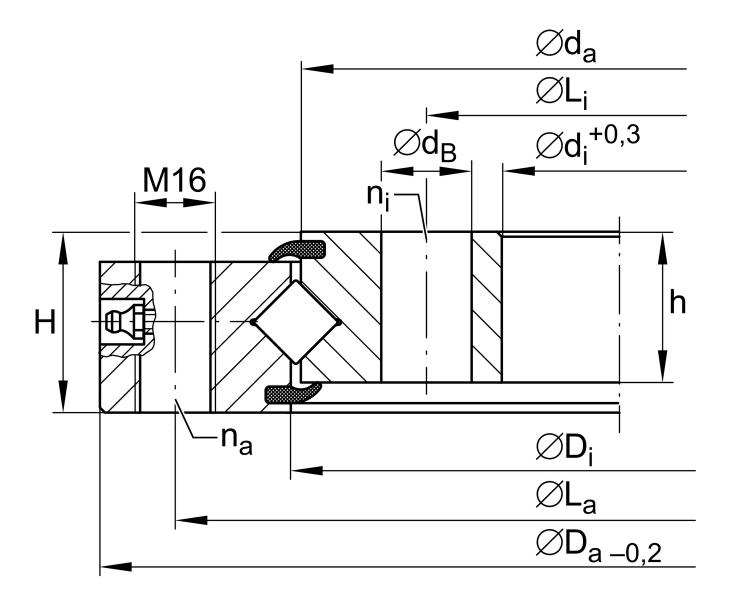

Main Dimensions & Performance Data
di
140 mm
Bore Diameter
0.3 mm
Bore diameter upper tolerance
0 mm
Bore diameter lower tolerance
di ZT
141 mm
Diameter centring inner ring
IT8
Diameter centring inner ring tolerance
Da
300 mm
Outside Diameter
Da ZT
299 mm
Diameter centring outer ring
Da
299 mm
Diameter centring outer ring
-IT8
Diameter centring outer ring tolerance
0 mm
Outside diameter upper tolerance
-0.2 mm
Outside diameter lower tolerance
H
36 mm
Height
≈m
11.17 kg
Weight
