INA XU120222
Slewing Rings

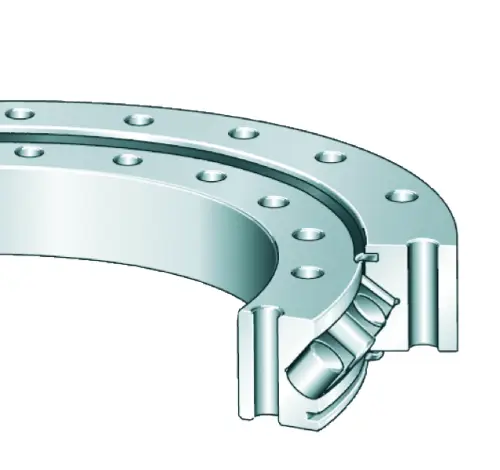

Crossed roller bearings without gear teeth, sealed on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

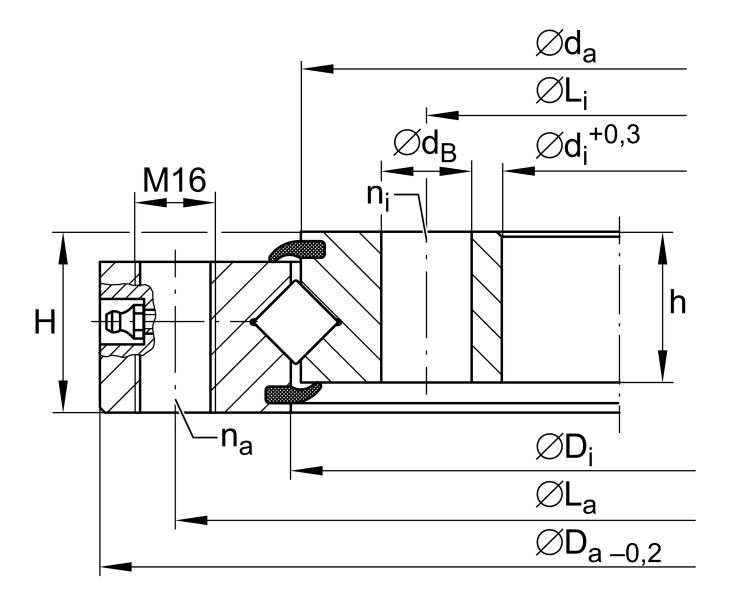

Main Dimensions & Performance Data
di
140 mm
Bore Diameter
0.3 mm
Bore diameter upper tolerance
0 mm
Bore diameter lower tolerance
Da
300 mm
Outside Diameter
0 mm
Outside diameter upper tolerance
-0.2 mm
Outside diameter lower tolerance
H
36 mm
Height
≈m
11.15 kg
Weight
