INA XU160260-ZT
Slewing Rings

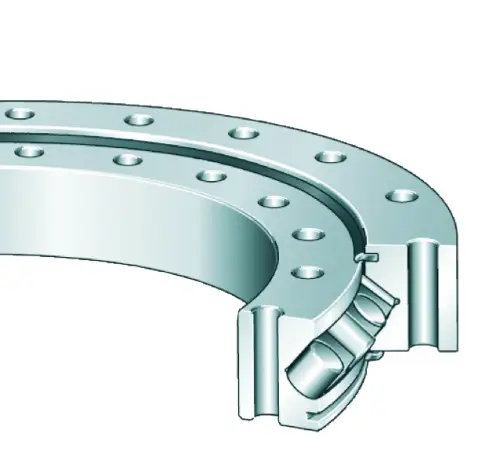

Crossed roller bearings without gear teeth, sealed on both sides
(BRAND)：INA
(Availability)：In Stock

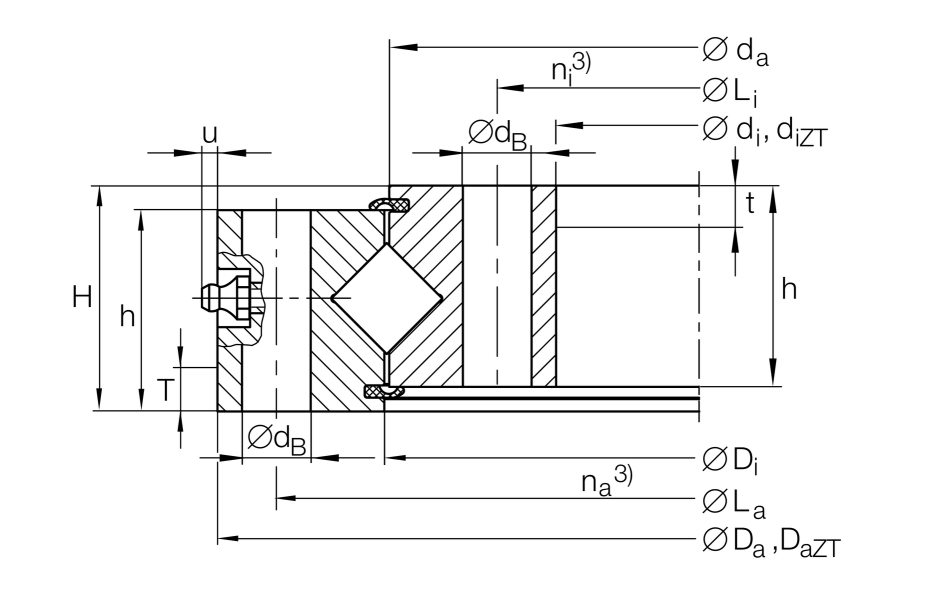

Main Dimensions & Performance Data
di
191 mm
Bore Diameter
di ZT
193 mm
Diameter centring inner ring
IT8
Diameter centring inner ring tolerance
t
7 mm
Length centering inner ring
Da
329 mm
Outside Diameter
Da ZT
327 mm
Diameter centring outer ring
-IT8
Diameter centring outer ring tolerance
T
7 mm
Length centering outer ring
H
46 mm
Height
≈m
15.2 kg
Weight
