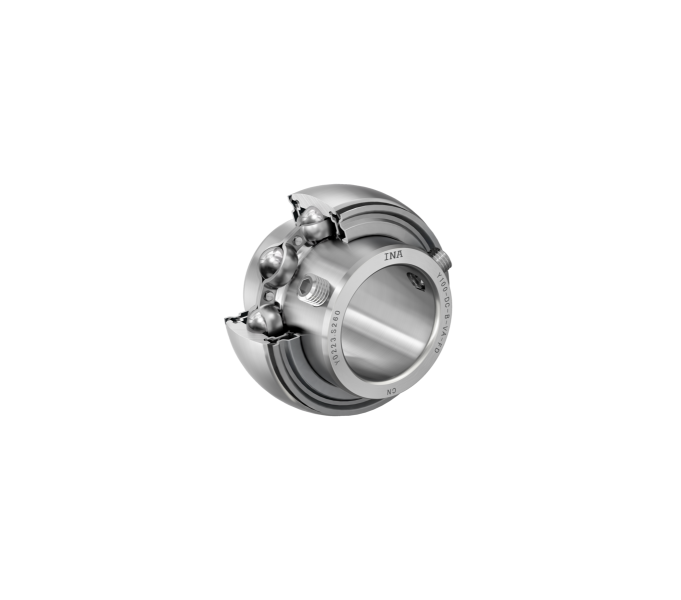

INA Y104-DC-B-VA-FD
Insert Ball Bearings and Belt Tension Pulleys
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
31.75 mm
Bore diameter
d
1.25 in
Bore diameter, inch
DSP
62 mm
Outside diameter
B
38.1 mm
Width
Cur
760 N
Fatigue load limit, radial
Cr
16,700 N
Basic dynamic load rating, radial
C0r
9,110 N
Basic static load rating, radial
≈m
0.31 kg
Weight
