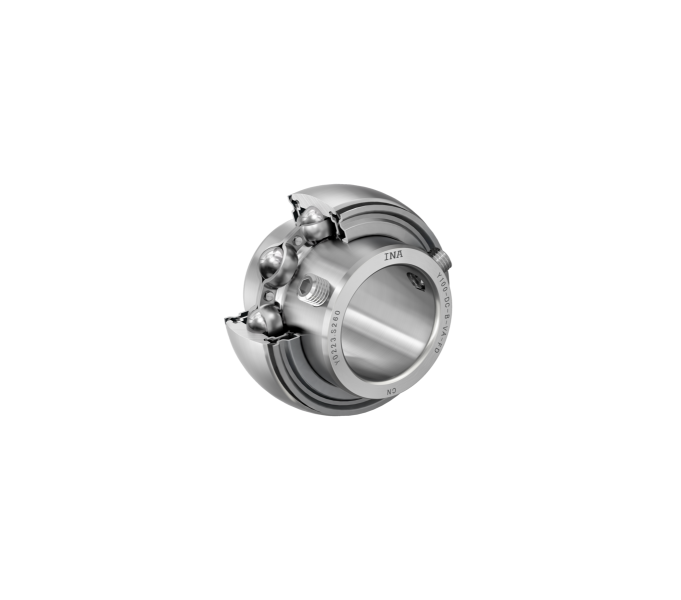

INA YE25-DC-B-VA-FD
Insert Ball Bearings and Belt Tension Pulleys
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
25 mm
Bore diameter
DSP
52 mm
Outside diameter
B
34.1 mm
Width
Cur
550 N
Fatigue load limit, radial
Cr
12,200 N
Basic dynamic load rating, radial
C0r
6,500 N
Basic static load rating, radial
≈m
0.2 kg
Weight
