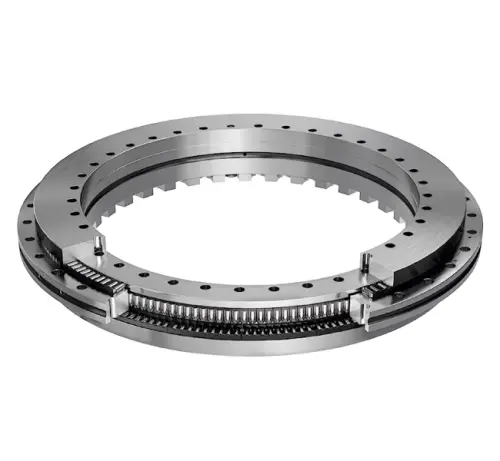

INA YRTC100-XL
Combined Axial-, Radial-Super Precision Bearings
Axial/radial bearings, double direction, for screw mounting
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
100 mm
Bore diameter
0 mm
Bore diameter upper tolerance
-0.01 mm
Bore diameter lower tolerance
D
185 mm
Outside diameter
0 mm
Outside diameter upper tolerance
-0.02 mm
Outside diameter lower tolerance
H
38 mm
Height
Cr
49,500 N
Basic dynamic load rating, radial
C0r
88,000 N
Basic static load rating, radial
Ca
105,000 N
Basic dynamic load rating, axial
C0a
455,000 N
Basic static load rating, axial
CG
1,200 1/min
Limiting speed
MR
2.5 Nm
Bearing friction torque at 5 1/min
≈m
3.571 kg
Weight

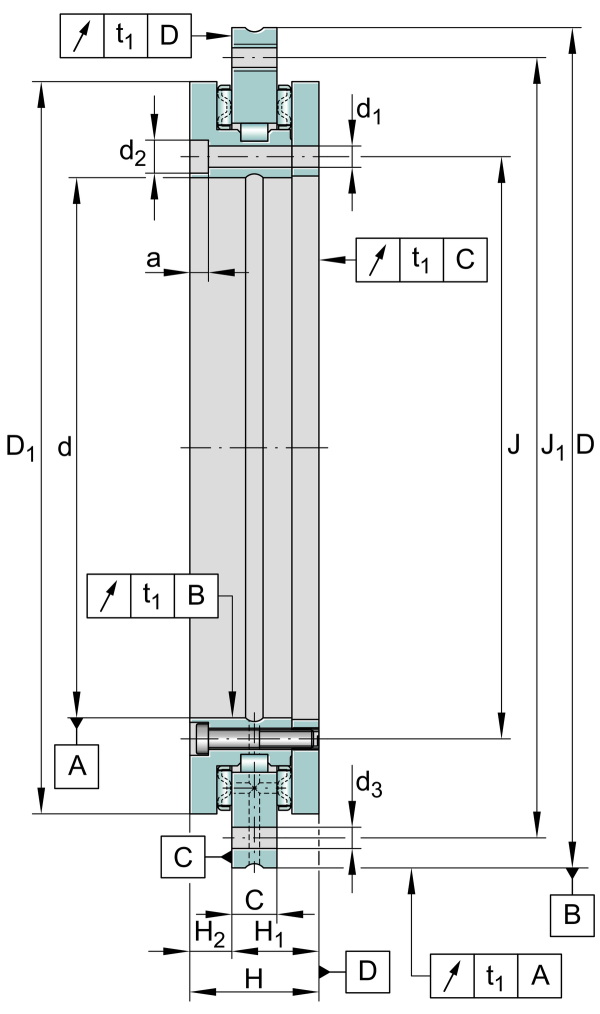

Mounting dimensions
J
112 mm
Pitch circle diameter fixing holes in inner ring
J1
170 mm
Pitch circle diameter fixing holes in outer ring
d1
5.6 mm
Fixing holes diameter inner ring
d2
10 mm
Counterbore diameter of fixing holes
a
5.4 mm
Counterbore depth of fixing holes
16
Quantity of fixing holes inner ring
d3
5.6 mm
Fixing holes diameter outer ring
15
Quantity of fixing holes outer ring
n
18
Pitch quantity

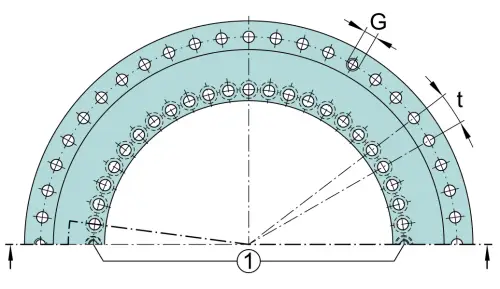

t
20 u00B0
Pitch separation angle
G
M5
Threaded extraction hole
3
Quantity of threaded extraction hole
MA
8.5 Nm
Screw tightening torque
2
Quantity of retaining screws
t1
3 u00B5m
Axial and radial runout, measurement standard; Measured on mounted bearing, with ideal adjacent construction.
