INA YRTSM200
Combined Axial-, Radial-Super Precision Bearings

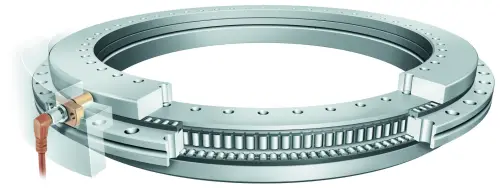

Axial/radial bearings, double direction, screw mounting, for higher speeds, with integrated angular measuring system
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
200 mm
Bore diameter
0 mm
Bore diameter upper tolerance
-0.015 mm
Bore diameter lower tolerance
D
300 mm
Outside diameter
0 mm
Outside diameter upper tolerance
-0.018 mm
Outside diameter lower tolerance
H
45 mm
Height
Cr
94,000 N
Basic dynamic load rating, radial
C0r
226,000 N
Basic static load rating, radial
Ca
155,000 N
Basic dynamic load rating, axial
C0a
840,000 N
Basic static load rating, axial
CG
1,160 1/min
Limiting speed
≈m
8.8 kg
Weight

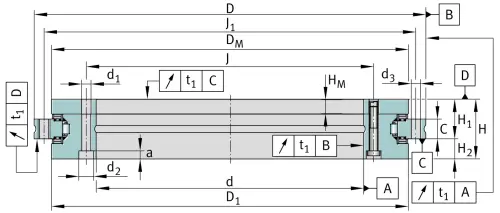

Mounting dimensions
J
215 mm
Pitch circle diameter fixing holes in inner ring
J1
285 mm
Pitch circle diameter fixing holes in outer ring
d1
7 mm
Fixing holes diameter inner ring
d2
11 mm
Counterbore diameter of fixing holes
a
6.2 mm
Counterbore depth of fixing holes
46
Quantity of fixing holes inner ring
d3
7 mm
Fixing holes diameter outer ring
45
Quantity of fixing holes outer ring

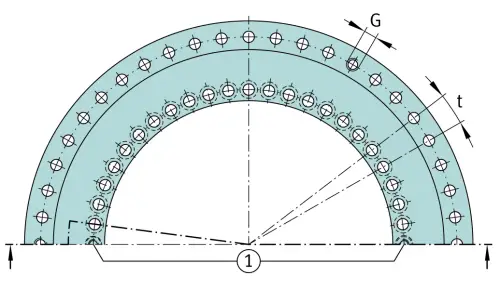

n
48
Pitch quantity
t
7.5 u00B0
Pitch separation angle
G
M8
Threaded extraction hole
3
Quantity of threaded extraction hole
MA
14 Nm
Screw tightening torque
2
Quantity of retaining screws
t1
4 u00B5m
Axial and radial runout, measurement standard; Measured on mounted bearing, with ideal adjacent construction.
