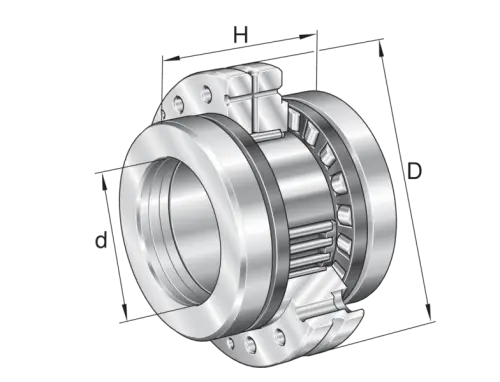

INA ZARF65155-TV
Combined Axial-, Radial-Super Precision Bearings
Needle roller/axial cylindrical roller bearings ZARF, double direction, for screw mounting
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

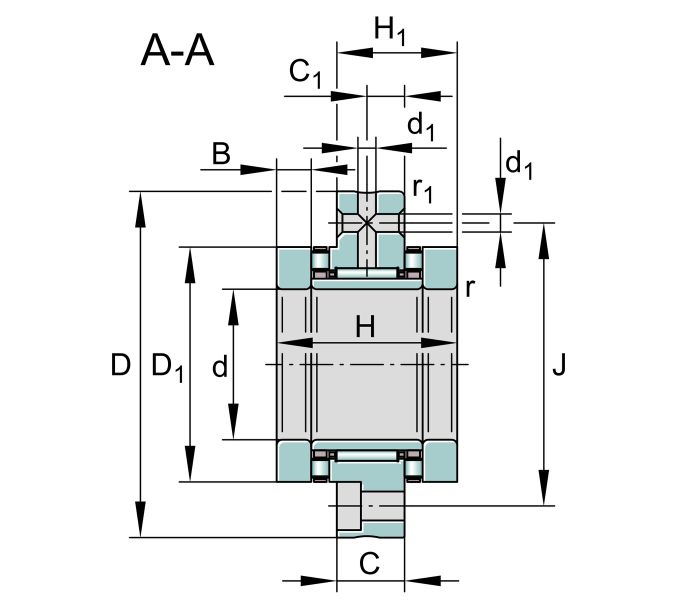

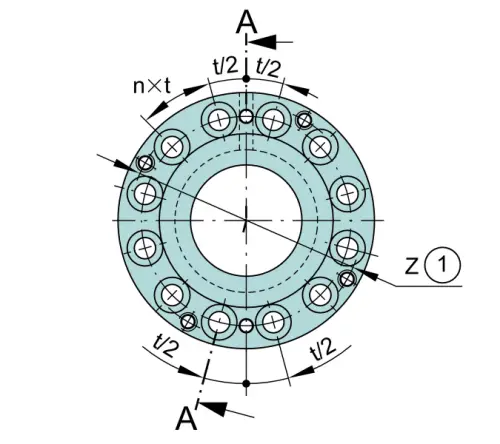

Main Dimensions & Performance Data
d
65 mm
Bore diameter
D
155 mm
Outside diameter
H
82 mm
Hight
Ca
172,000 N
Basic dynamic load rating, axial
C0a
500,000 N
Basic static load rating, axial
Cr
54,000 N
Basic dynamic load rating, radial
C0r
104,000 N
Basic static load rating, radial
Cua
46,500 N
Fatigue load limit, axial
Cur
14,900 N
Fatigue load limit, radial
nG Oil
2,600 1/min
Limiting speed for oil lubrication
nG Grease
900 1/min
Limiting speed for grease lubrication
MRL
4 Nm
Bearing friction torque
≈m
4.52 kg
Weight

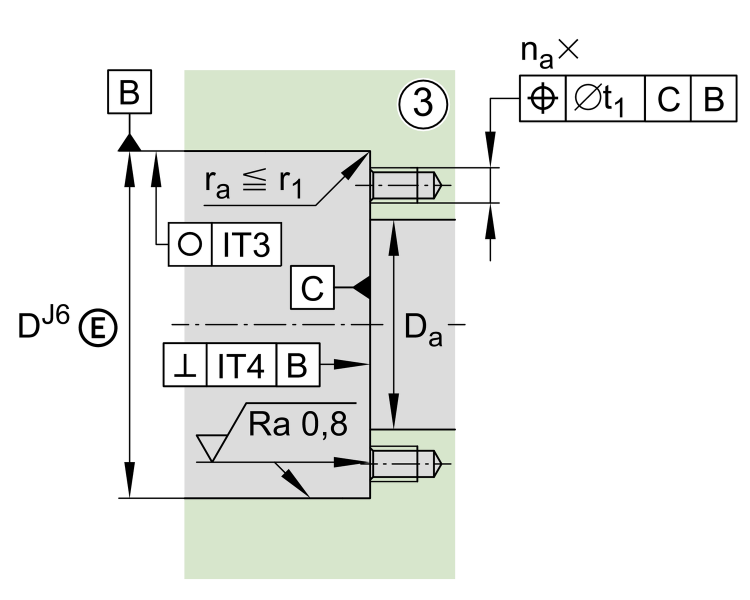

Mounting dimensions
da min
111 mm
Maximum diameter of housing shoulder
da min
97 mm
Minimum diameter shaft shoulder
t1
0.2 mm
Position bore in the housing
