INA ZARN1545-TV
Combined Axial-, Radial-Super Precision Bearings

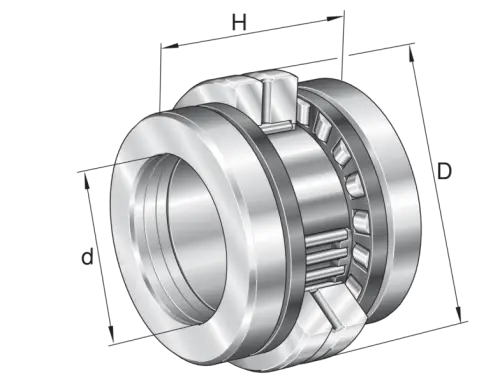

Needle roller/axial cylindrical roller bearings ZARN, double direction
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

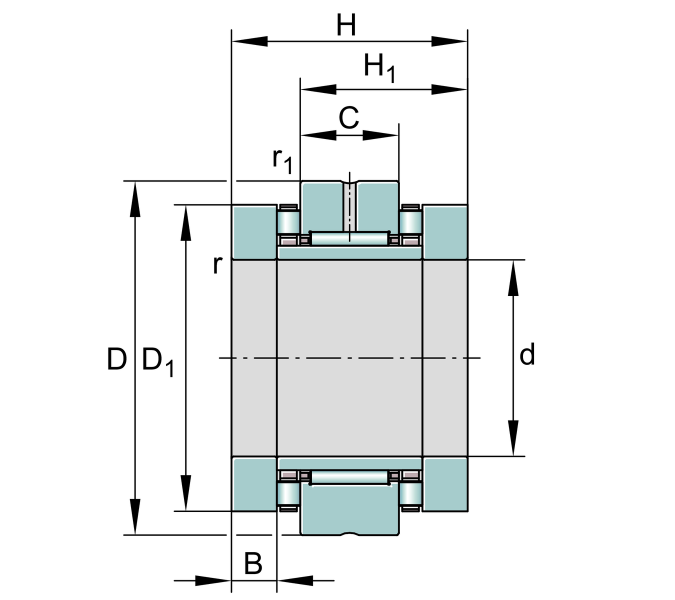

Main Dimensions & Performance Data
d
15 mm
Bore diameter
D
45 mm
Outside diameter
H
40 mm
Hight
Ca
24,900 N
Basic dynamic load rating, axial
C0a
53,000 N
Basic static load rating, axial
Cr
13,000 N
Basic dynamic load rating, radial
C0r
17,500 N
Basic static load rating, radial
Cua
7,500 N
Fatigue load limit, axial
Cur
2,650 N
Fatigue load limit, radial
nG Oil
8,500 1/min
Limiting speed for oil lubrication
nG Grease
2,200 1/min
Limiting speed for grease lubrication
MRL
0.35 Nm
Bearing friction torque
≈m
276.9 g
Weight

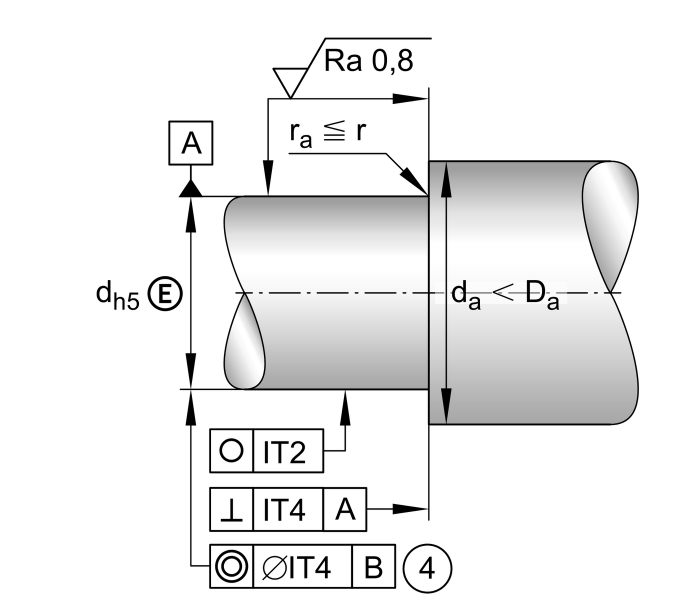

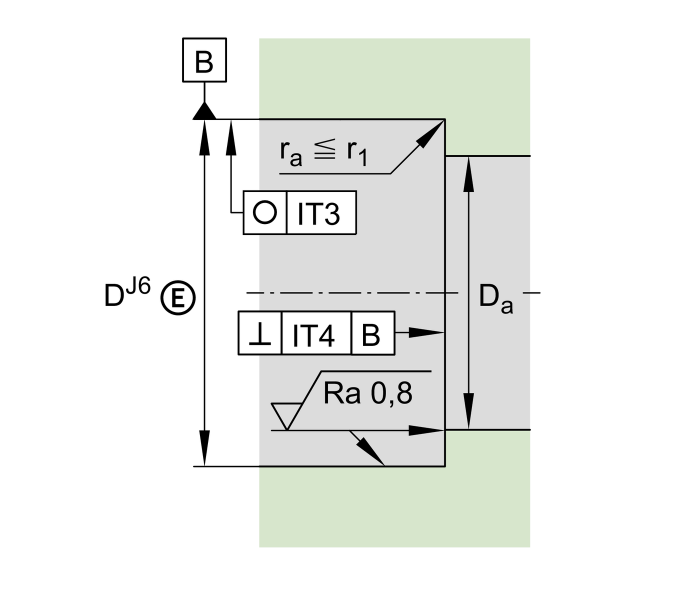

Mounting dimensions
da min
36 mm
Maximum diameter of housing shoulder
da min
28 mm
Minimum diameter shaft shoulder
