INA ZARN1747-L-TV
Combined Axial-, Radial-Super Precision Bearings

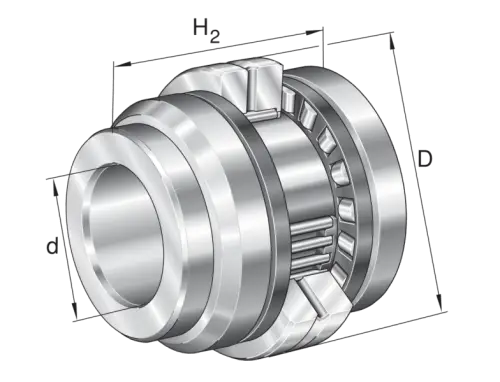

Needle roller/axial cylindrical roller bearings ZARN..-L, double direction, long shaft locating washer
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

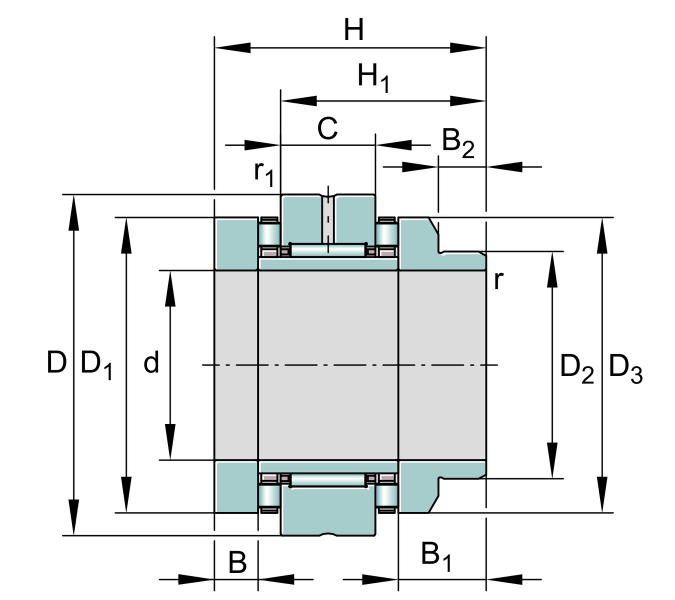

Main Dimensions & Performance Data
d
17 mm
Bore diameter
D
47 mm
Outside diameter
H
57 mm
Hight
Ca
26,000 N
Basic dynamic load rating, axial
C0a
57,000 N
Basic static load rating, axial
Cr
14,000 N
Basic dynamic load rating, radial
C0r
19,900 N
Basic static load rating, radial
Cua
8,000 N
Fatigue load limit, axial
Cur
3,000 N
Fatigue load limit, radial
nG Oil
7,800 1/min
Limiting speed for oil lubrication
nG Grease
2,100 1/min
Limiting speed for grease lubrication
MRL
0.4 Nm
Bearing friction torque
≈m
0.378 kg
Weight

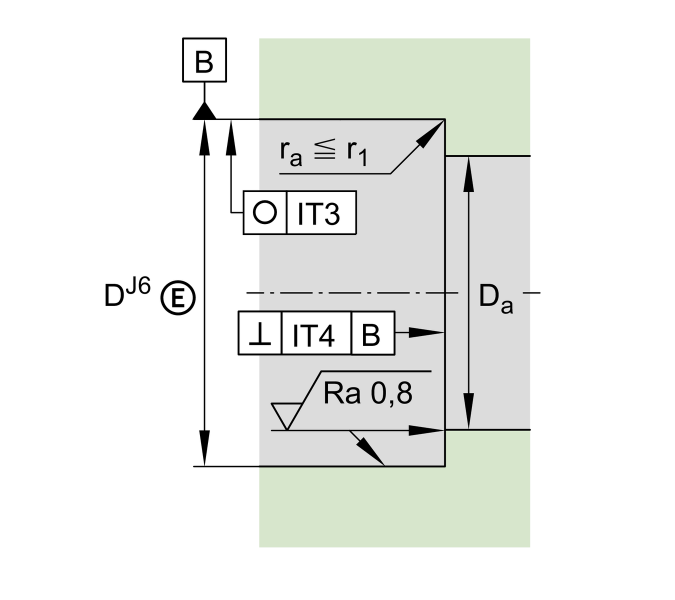

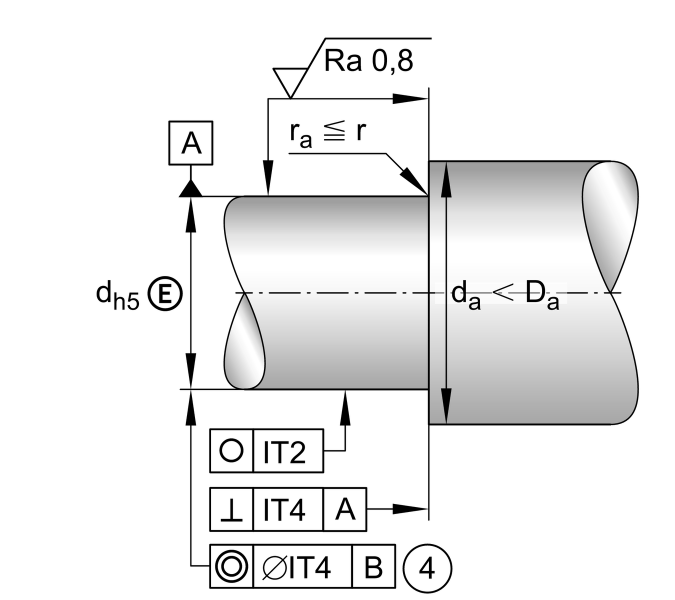

Mounting dimensions
da min
39 mm
Maximum diameter of housing shoulder
da min
26 mm
Minimum diameter shaft shoulder
