INA ZARN50110-TV
Combined Axial-, Radial-Super Precision Bearings

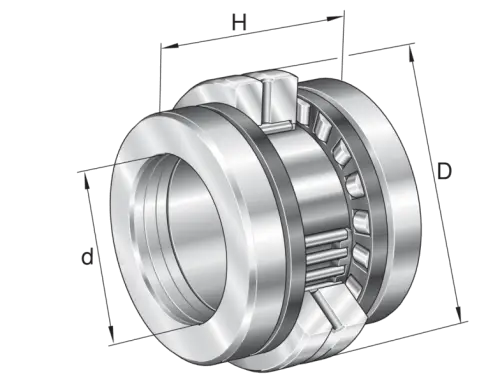

Needle roller/axial cylindrical roller bearings ZARN, double direction
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

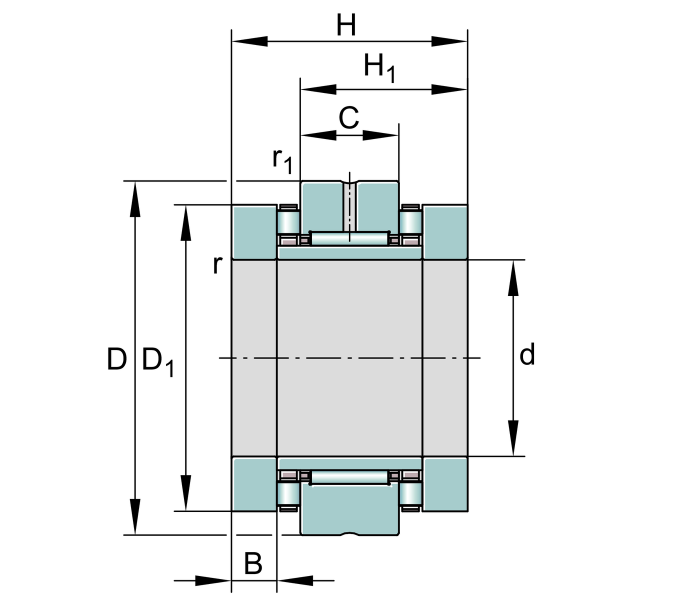

Main Dimensions & Performance Data
d
50 mm
Bore diameter
D
110 mm
Outside diameter
H
82 mm
Hight
Ca
172,000 N
Basic dynamic load rating, axial
C0a
480,000 N
Basic static load rating, axial
Cr
46,500 N
Basic dynamic load rating, radial
C0r
103,000 N
Basic static load rating, radial
Cua
44,500 N
Fatigue load limit, axial
Cur
12,700 N
Fatigue load limit, radial
nG Oil
3,100 1/min
Limiting speed for oil lubrication
nG Grease
1,100 1/min
Limiting speed for grease lubrication
MRL
3.8 Nm
Bearing friction torque
≈m
3.279 kg
Weight

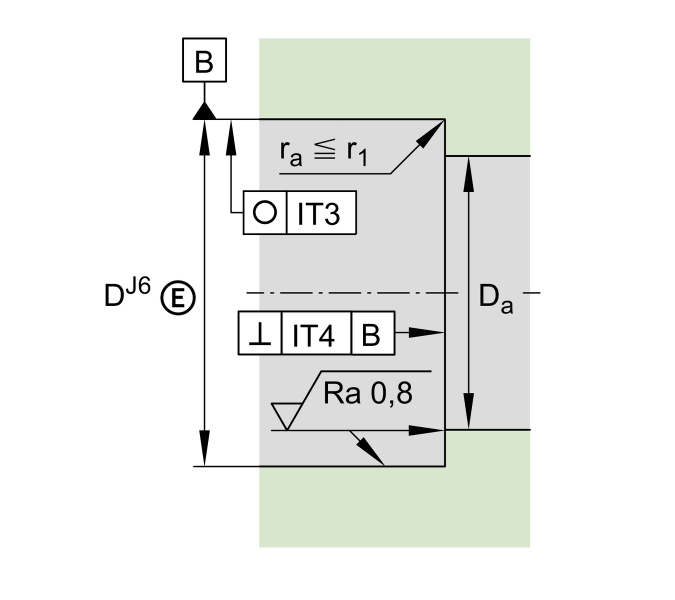

Mounting dimensions
da min
96 mm
Maximum diameter of housing shoulder
da min
75 mm
Minimum diameter shaft shoulder
