INA ZARN65125-L-TV
Combined Axial-, Radial-Super Precision Bearings

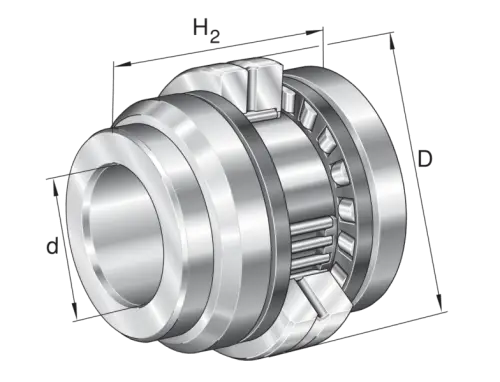

Needle roller/axial cylindrical roller bearings ZARN..-L, double direction, long shaft locating washer
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

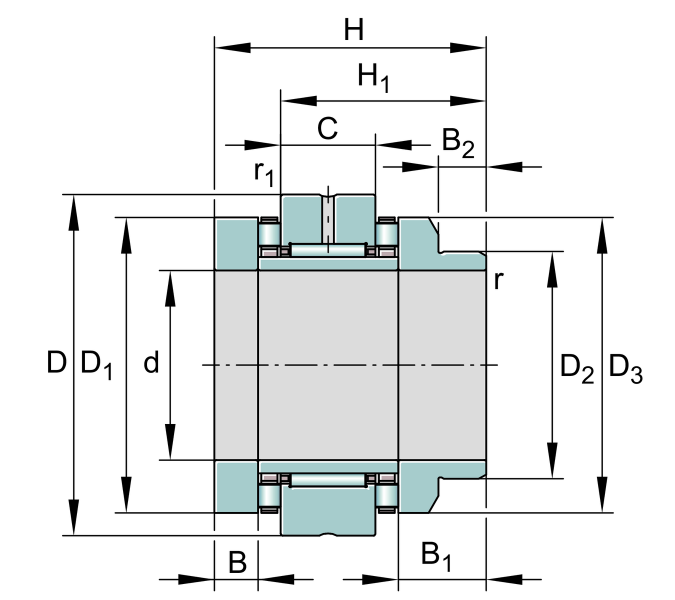

Main Dimensions & Performance Data
d
65 mm
Bore diameter
D
125 mm
Outside diameter
H
103 mm
Hight
Ca
172,000 N
Basic dynamic load rating, axial
C0a
500,000 N
Basic static load rating, axial
Cr
54,000 N
Basic dynamic load rating, radial
C0r
104,000 N
Basic static load rating, radial
Cua
46,500 N
Fatigue load limit, axial
Cur
14,900 N
Fatigue load limit, radial
nG Oil
2,600 1/min
Limiting speed for oil lubrication
nG Grease
900 1/min
Limiting speed for grease lubrication
MRL
4 Nm
Bearing friction torque
≈m
4.352 kg
Weight

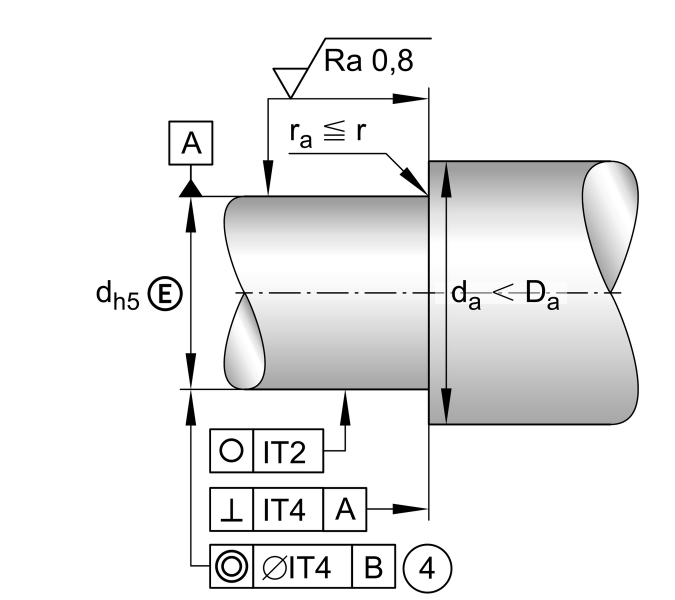

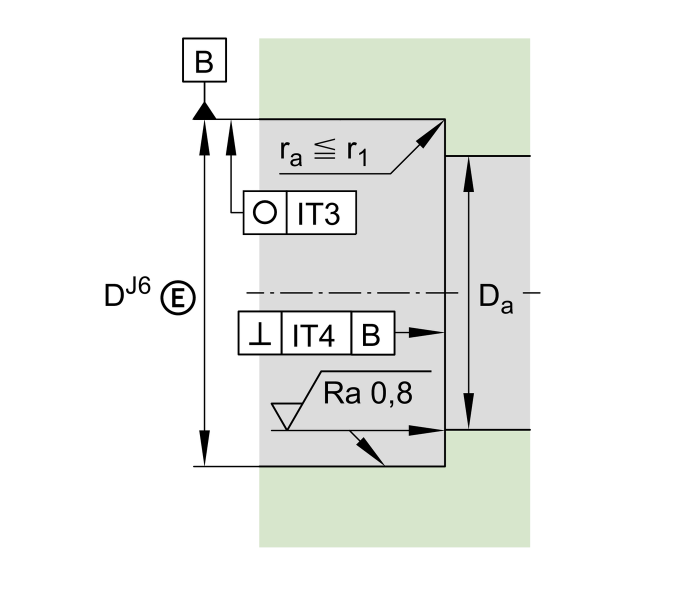

Mounting dimensions
da min
111 mm
Maximum diameter of housing shoulder
da min
88 mm
Minimum diameter shaft shoulder
