INA ZARN90180-L-TV
Combined Axial-, Radial-Super Precision Bearings

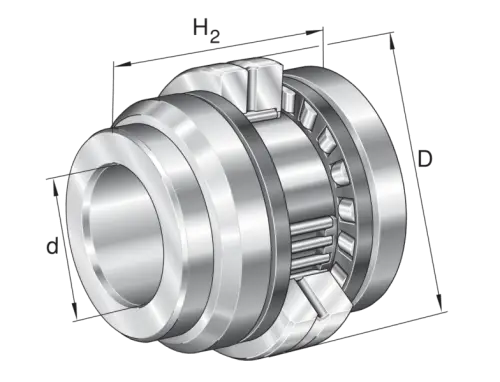

Needle roller/axial cylindrical roller bearings ZARN..-L, double direction, long shaft locating washer
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

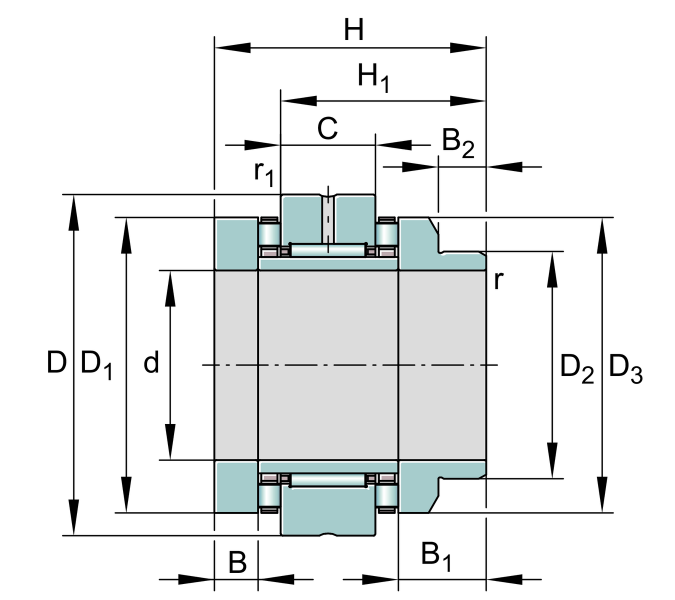

Main Dimensions & Performance Data
d
90 mm
Bore diameter
D
180 mm
Outside diameter
H
135 mm
Hight
Ca
325,000 N
Basic dynamic load rating, axial
C0a
1,030,000 N
Basic static load rating, axial
Cr
98,000 N
Basic dynamic load rating, radial
C0r
210,000 N
Basic static load rating, radial
Cua
95,000 N
Fatigue load limit, axial
Cur
29,000 N
Fatigue load limit, radial
nG Oil
1,800 1/min
Limiting speed for oil lubrication
nG Grease
700 1/min
Limiting speed for grease lubrication
MRL
10.5 Nm
Bearing friction torque
≈m
13.896 kg
Weight
Mounting dimensions
da min
161 mm

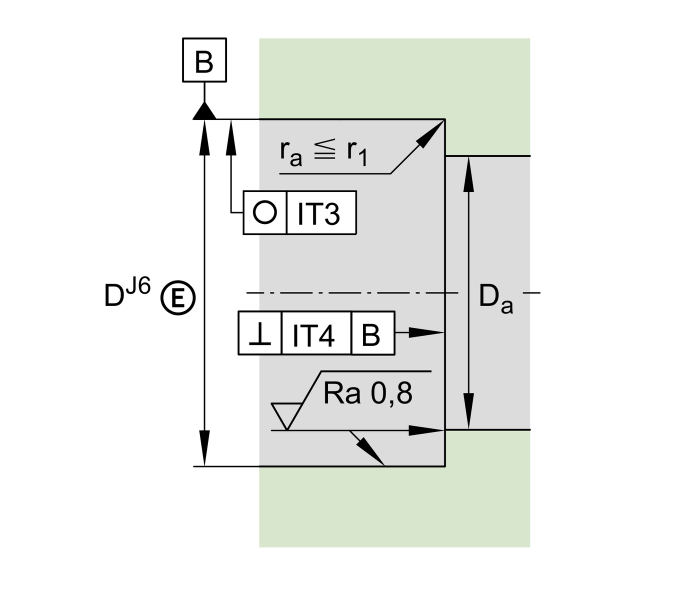

Maximum diameter of housing shoulder
da min
125 mm

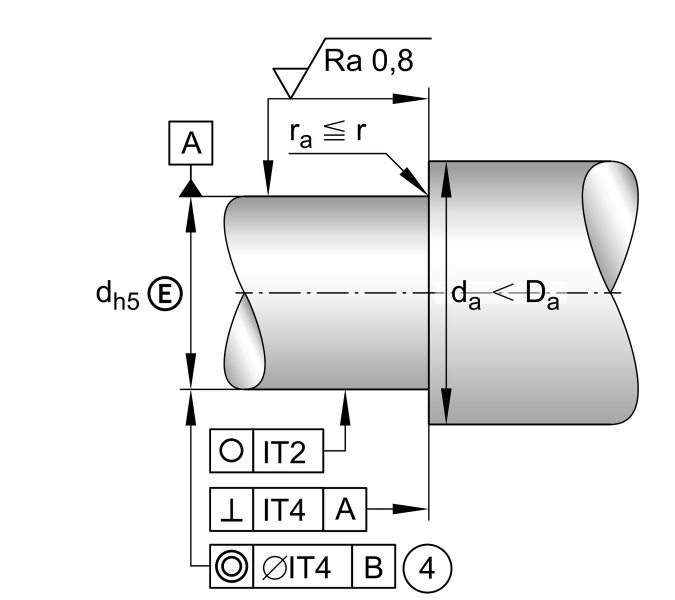

Minimum diameter shaft shoulder
