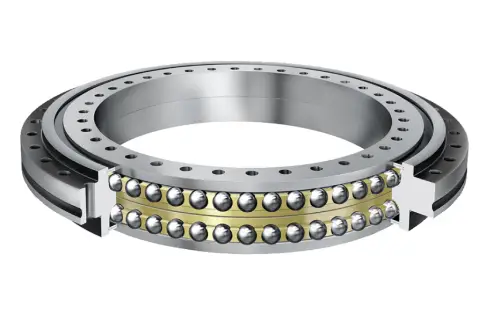

INA ZKLDF100
Combined Axial-, Radial-Super Precision Bearings
Axial angular contact ball bearings ZKLDF, double direction, for screw mounting, sealing shields on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
100 mm
Bore diameter
0 mm
Bore diameter upper tolerance
-0.01 mm
Bore diameter lower tolerance
D
185 mm
Flange diameter
0 mm
Flange diameter upper tolerance
-0.015 mm
Flange diameter lower tolerance
H
38 mm
Height
CG
5,000 1/min
Limiting speed
Ca
71,000 N
Basic dynamic load rating, axial
C0a
265,000 N
Basic static load rating, axial
Cua
10,300 N
Fatigue load limit, axial
≈m
3.84 kg
Weight

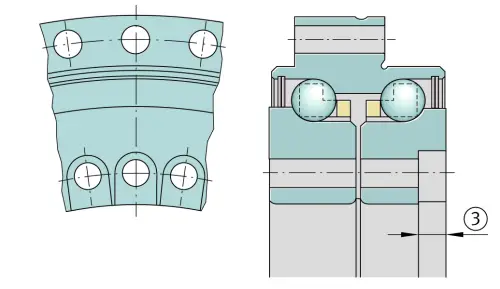

Mounting dimensions
J
112 mm
Pitch circle diameter fixing holes in inner ring
J1
170 mm
Pitch circle diameter fixing holes in outer ring
d1
5.6 mm
Fixing holes diameter inner ring
d2
10 mm
Counterbore diameter of fixing holes
a
5.4 mm
Counterbore depth of fixing holes
16
Quantity of fixing holes inner ring
d3
5.6 mm
Fixing holes diameter outer ring
15
Quantity of fixing holes outer ring
n
18
Pitch quantity
t
20 u00B0
Pitch separation angle
G
M5
Threaded extraction hole
3
Quantity of threaded extraction hole
MA
8.5 Nm
Screw tightening torque
2
Quantity of retaining screws
