INA ZKLF1762-2RS-PE
Axial-Super Precision Bearings

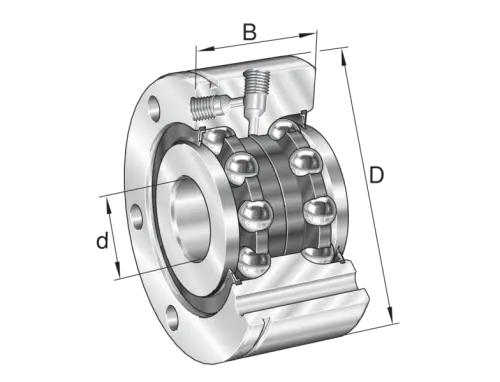

Axial angular contact ball bearing ZKLF..-2RS-PE, double direction, screw mounting
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

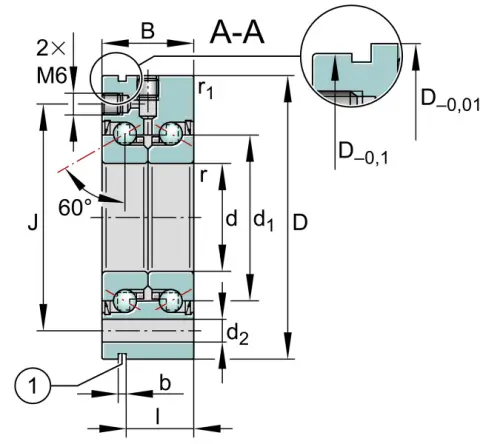

Main Dimensions & Performance Data
d
17 mm
Bore diameter
0 mm
Bore diameter upper tolerance
-0.01 mm
Bore diameter lower tolerance
D
62 mm
Outside diameter
0 mm
Outside diameter upper tolerance
-0.013 mm
Outside diameter lower tolerance
B
25 mm
Width
0 mm
Width upper tolerance
-0.25 mm
Width lower tolerance
Ca
18,900 N
Basic dynamic load rating, axial
C0a
31,500 N
Basic static load rating, axial
Cua
1,440 N
Fatigue load limit, axial
nG Grease
7,600 1/min
Limiting speed for grease lubrication
nϑ
3,300 1/min
Thermally safe operating speed
MR
0.24 Nm
Bearing frictional torque
≈m
0.452 kg
Weight

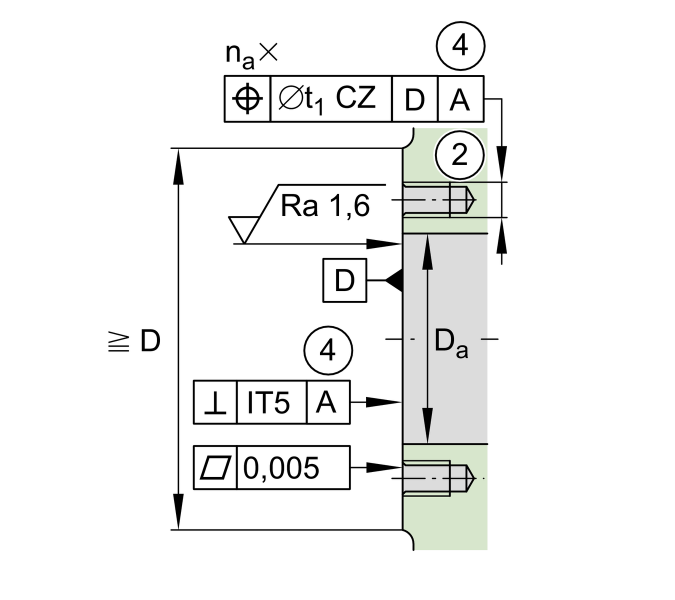

Mounting dimensions
da min
37 mm
Maximum diameter of housing
da min
23 mm
Minimum diameter shaft
t1
0.1 mm
Position tolerance of bore in the housing
M6
Size of fixing screws

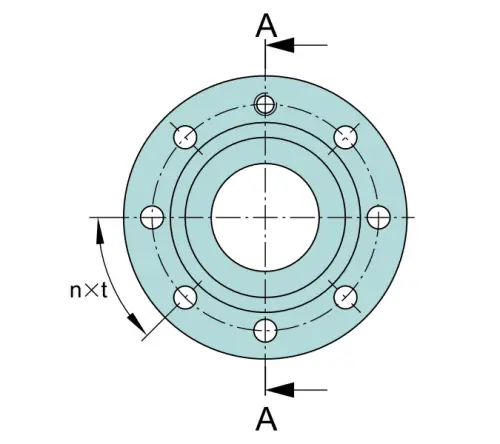

na
3
Number of holes in adjacent construction
ta
120 u00B0
Pitch separation angle of holes in adjacent construction
M6
Connection thread for lubrication
