INA ZKLF50115-2RS-PE
Axial-Super Precision Bearings

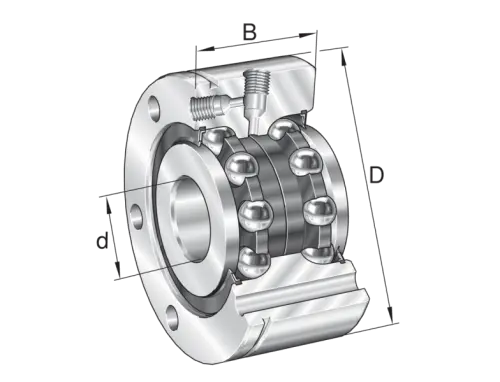

Axial angular contact ball bearing ZKLF..-2RS-PE, double direction, screw mounting
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
50 mm
Bore diameter
0 mm
Bore diameter upper tolerance
-0.01 mm
Bore diameter lower tolerance
D
115 mm
Outside diameter
0 mm
Outside diameter upper tolerance
-0.015 mm
Outside diameter lower tolerance
B
34 mm
Width
0 mm
Width upper tolerance
-0.25 mm
Width lower tolerance
Ca
46,500 N
Basic dynamic load rating, axial
C0a
126,000 N
Basic static load rating, axial
Cua
5,800 N
Fatigue load limit, axial
nG Grease
3,200 1/min
Limiting speed for grease lubrication
nϑ
1,500 1/min
Thermally safe operating speed
MR
0.9 Nm
Bearing frictional torque
≈m
1.783 kg
Weight
Mounting dimensions
da min
82 mm
Maximum diameter of housing
da min
63 mm
Minimum diameter shaft
t1
0.2 mm
Position tolerance of bore in the housing
M8
Size of fixing screws
na
6
Number of holes in adjacent construction
ta
60 u00B0
Pitch separation angle of holes in adjacent construction
M6
Connection thread for lubrication
