INA ZKLFA0850-2Z
Axial-Super Precision Bearings

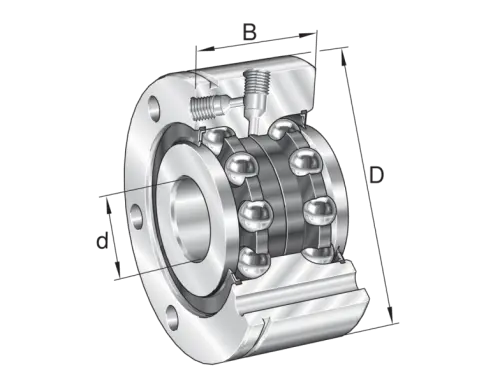

Angular contact ball bearing units ZKLFA..-2Z, double direction, for screw mounting, gap seals on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
8 mm
Bore diameter
0 mm
Bore diameter upper tolerance
-0.005 mm
Bore diameter lower tolerance
D
32 mm
Outside diameter
0 mm
Outside diameter upper tolerance
-0.01 mm
Outside diameter lower tolerance
B
20 mm
Width
0 mm
Width upper tolerance
-0.25 mm
Width lower tolerance
Ca
12,500 N
Basic dynamic load rating, axial
C0a
16,300 N
Basic static load rating, axial
Cua
740 N
Fatigue load limit, axial
nG Grease
15,500 1/min
Limiting speed for grease lubrication
nϑ
9,500 1/min
Thermally permissible speed
≈m
0.132 kg
Weight

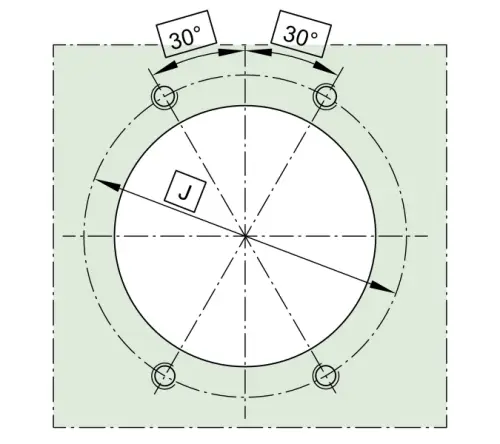

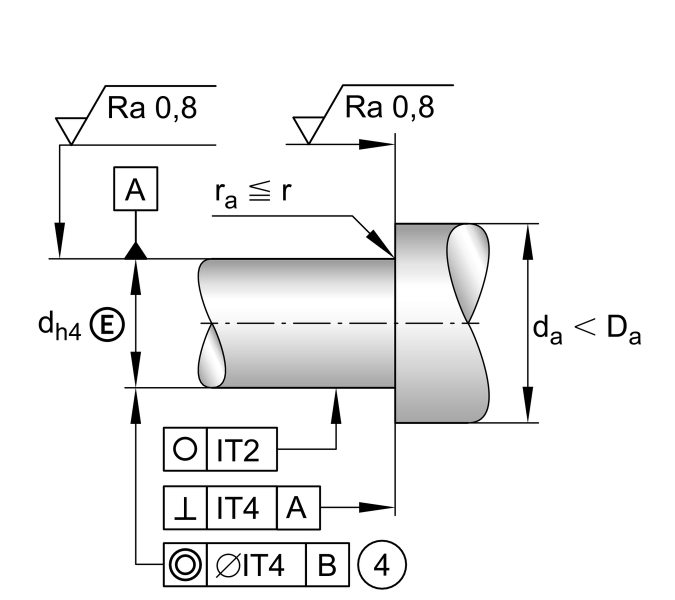

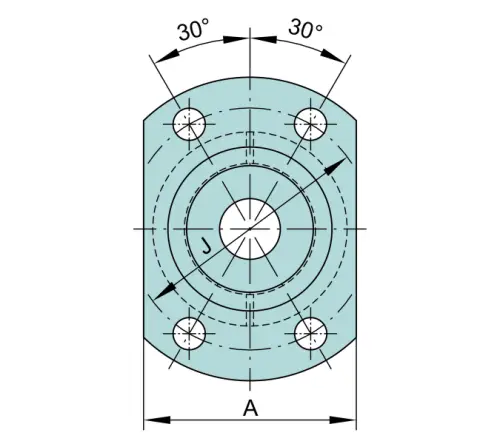

Mounting dimensions
da min
11 mm
Minimum diameter shaft shoulder
da max
25 mm
Maximum diameter of shaft shoulder
t1
0.1 mm
Position tolerance
M5
Screw size
na
4
Number of screws
