INA ZKLN0619-2Z-XL
Axial-Super Precision Bearings

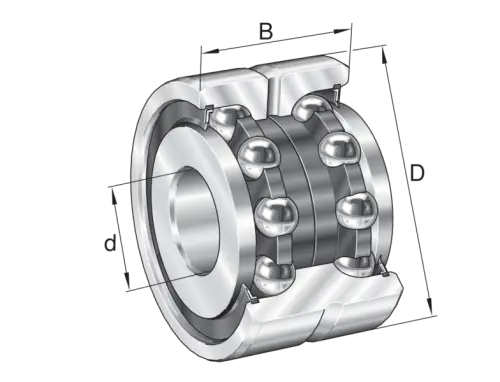

Axial angular contact ball bearings ZKLN..-2Z, double direction, gap seals on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

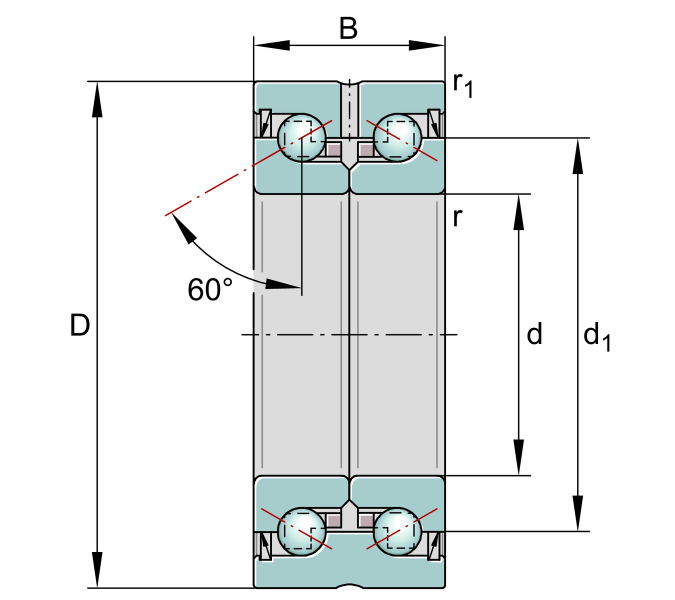

Main Dimensions & Performance Data
d
6 mm
Bore diameter
0.002 mm
Bore diameter upper tolerance
-0.003 mm
Bore diameter lower tolerance
D
19 mm
Outside diameter
0 mm
Outside diameter upper tolerance
-0.01 mm
Outside diameter lower tolerance
B
12 mm
Width
0 mm
Width upper tolerance
-0.25 mm
Width lower tolerance
Ca
5,000 N
Basic dynamic load rating, axial
C0a
5,700 N
Basic static load rating, axial
Cua
345 N
Fatigue load limit, axial
nG Grease
22,800 1/min
Limiting speed for grease lubrication
nϑ
14,000 1/min
Thermally safe operating speed
MR
0.01 Nm
Bearing frictional torque
≈m
0.018 kg
Weight
Mounting dimensions
da min
16 mm
Maximum diameter of housing
da min
9 mm
Minimum diameter shaft
