INA ZKLN0832-2Z-XL
Axial-Super Precision Bearings

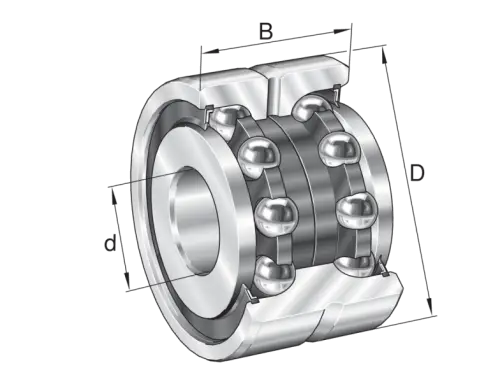

Axial angular contact ball bearings ZKLN..-2Z, double direction, gap seals on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

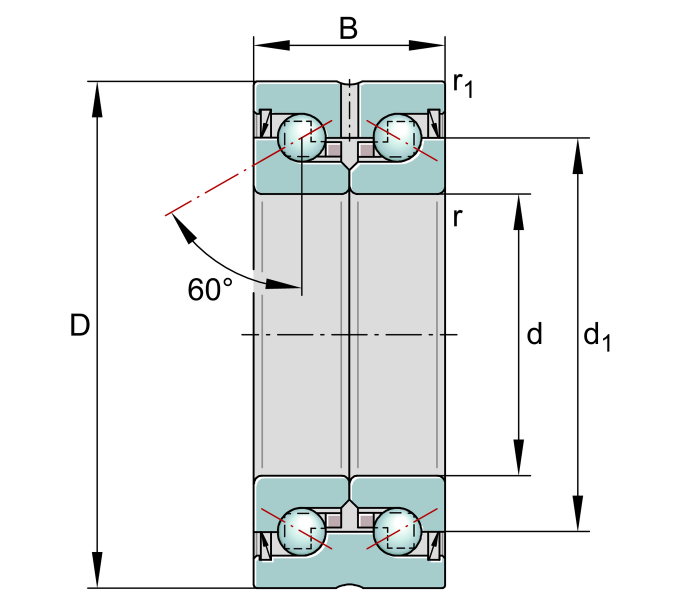

Main Dimensions & Performance Data
d
8 mm
Bore diameter
0 mm
Bore diameter upper tolerance
-0.005 mm
Bore diameter lower tolerance
D
32 mm
Outside diameter
0 mm
Outside diameter upper tolerance
-0.01 mm
Outside diameter lower tolerance
B
20 mm
Width
0 mm
Width upper tolerance
-0.25 mm
Width lower tolerance
Ca
13,800 N
Basic dynamic load rating, axial
C0a
16,300 N
Basic static load rating, axial
Cua
990 N
Fatigue load limit, axial
nG Grease
15,500 1/min
Limiting speed for grease lubrication
nϑ
9,500 1/min
Thermally safe operating speed
MR
0.04 Nm
Bearing frictional torque
≈m
89.5 g
Weight

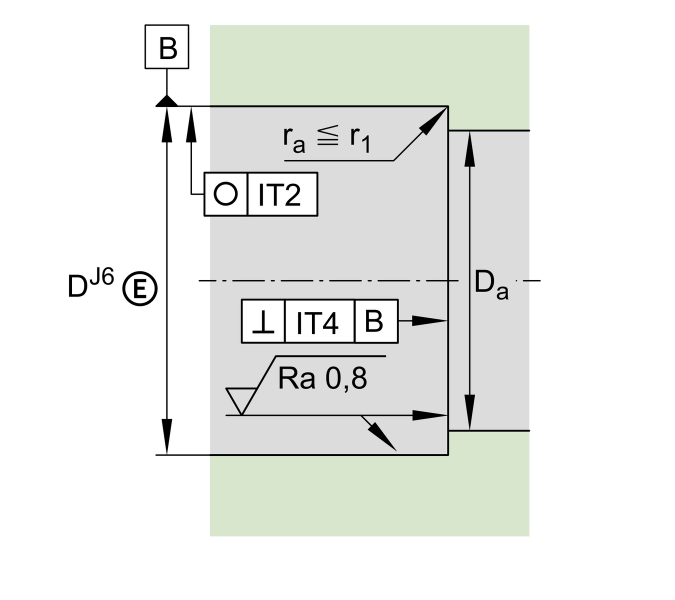

Mounting dimensions
da min
26 mm
Maximum diameter of housing
da min
11 mm
Minimum diameter shaft
