INA ZKLN1034-2Z-XL
Axial-Super Precision Bearings

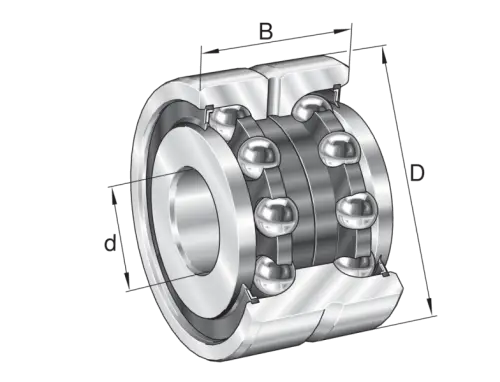

Axial angular contact ball bearings ZKLN..-2Z, double direction, gap seals on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

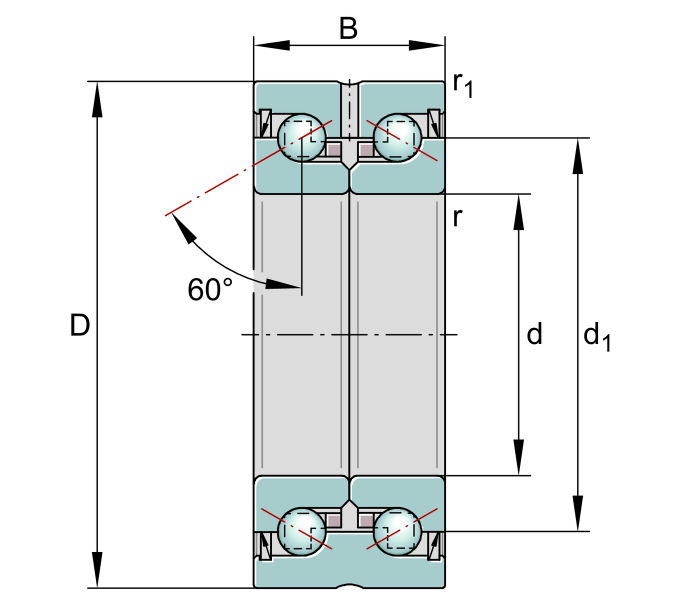

Main Dimensions & Performance Data
d
10 mm
Bore diameter
0 mm
Bore diameter upper tolerance
-0.005 mm
Bore diameter lower tolerance
D
34 mm
Outside diameter
0 mm
Outside diameter upper tolerance
-0.01 mm
Outside diameter lower tolerance
B
20 mm
Width
0 mm
Width upper tolerance
-0.25 mm
Width lower tolerance
Ca
14,700 N
Basic dynamic load rating, axial
C0a
18,800 N
Basic static load rating, axial
Cua
1,140 N
Fatigue load limit, axial
nG Grease
14,400 1/min
Limiting speed for grease lubrication
nϑ
8,600 1/min
Thermally safe operating speed
MR
0.06 Nm
Bearing frictional torque
≈m
0.098 kg
Weight
Mounting dimensions
da min
28 mm
Maximum diameter of housing
da min
14 mm
Minimum diameter shaft
